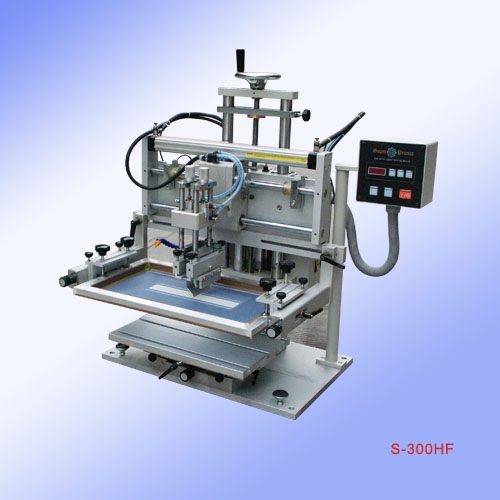

Flat screen printing machine
Model: S-300HF
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Screen Printing Machines
Characteristics
Functional characteristics
1, microprocessor control, high degree of automation, simple and convenient operation.
2, equipped with four digit auto counter.
3, with the print function.
4, auto ink scraping and oil, from the net, working table lifting, simple operation, and ensure stable printing quality.
5, auto balanced squeegee ensures equalized printing pressure.
6, the work station can be on the left, before and after the plane angle tuning, screen frame can be adjusted up and down, the adjustment is convenient and quick.
7, oil knife seat can be pneumatic lift, easy and convenient for network.
technical parameter
Maximum printing area: 300 * 200mm
Print the maximum height: less than 140mm
Max printing speed: 1000pcs/hr
Power: 60/50Hz 850W 110/220v
Gas consumption: 65Litre/min (6bar)
Outline dimension: 620 * 805 * 862mm
Weight: 750KG
