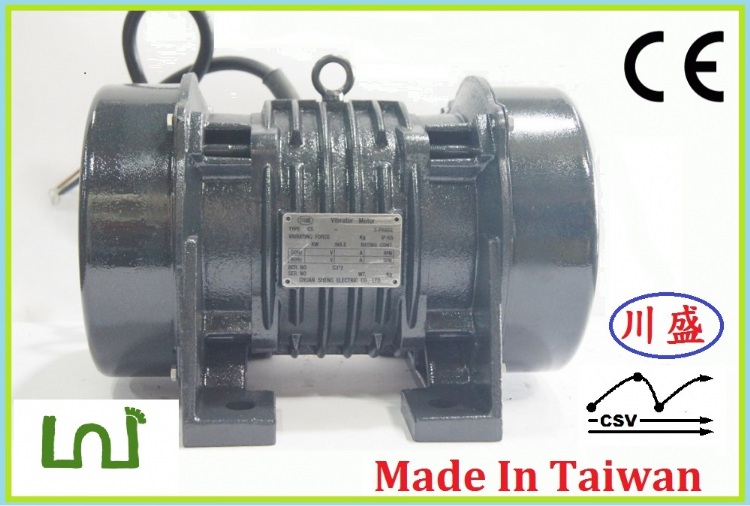

CSV Vibration Motor 4 pole B series 1/4~10 HP
Model: B-418~B-4750
Category: Machinery Parts and Components / Machinery Parts and Components / Motors
Characteristics
1. Amplitude adjustment available
2. Frequency (50/60) and Power input (220V/380V) selection by ordered
3. Dust tight construction and splash-proof design
4. Long life bearings and strengthen armature shaft
5. Casting housing and enhancement screw base for strong protection
6. Aluminum extrusion one piece formed housing for light-weight model
(A-204, A-209, A-212, A-218)
7. High-performance motor-driven vibrating generator
8. Multi-model lineup meets the varied needs of customers
9. Standardized screw size and location for vibrated object
10. Solid housing (frame and base) design for long-life operation
11. Easy maintenance & high reliability
Specifications
Best Vabratory Motor is the best partner of Vibrating Application
"Vibration motor is the part of machine, is the source of vibrating, and is the heart of force. When heart has some problem, sometime is just not comfortable, but sometime will cause big trouble. Our mother company is professional motor production line test platform provider. We guarantee our motor quality as well as reliability. Not only the motor design but also the material we follow the high level manufacture requirements to produce the "heart of force". We believe better motor source will provide better vibration force.” --- CEO Mr. Wang
Model | Power HP | Vibration Force in Kg | Weight in Kg |
B-418 | 1/4 | 400 | 28 |
A-425 | 1/3 | 550 | 30 |
A-437 | 1/2 | 900 | 50 |
A-475 | 1.1 | 2000 | 84 |
A-4110 | 1 (1/2) | 2500 | 96 |
A-4150 | 2 | 3500 | 136 |
A-4220 | 3 | 5000 | 226 |
B-4375 | 5 | 7500 | 293 |
B-4550 | 7 (1/2) | 8500 | Customize |
B-4750 | 10 | 10000 | Customize |
Power supply frequency of 50 Hz: 1500 rpm
Power supply frequency of 60 Hz: 1800 rpm
