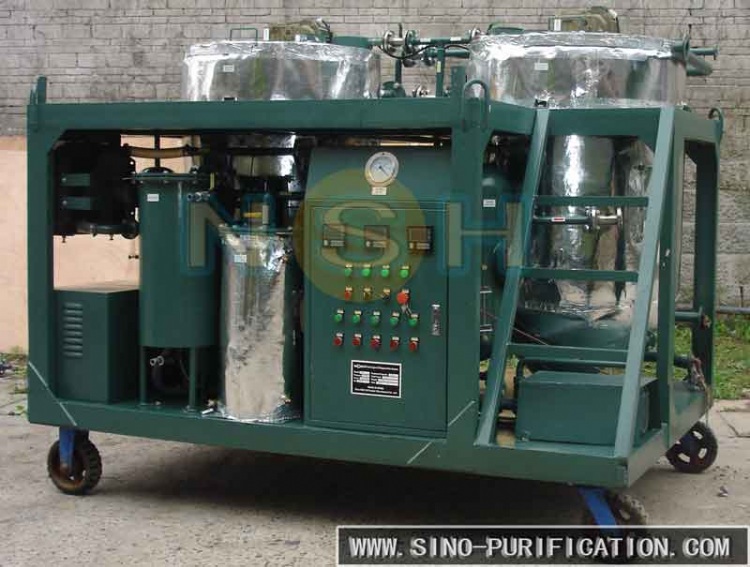

Industry Used Motor Oil Recycling Machine(Change Black to Yellow)
Model: GER
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Industrial Instruments & Equipment
Characteristics
GER series Used engine oil regeneration system is particularly suitable to regenerate used internal combustion engine oil including diesel engine oil,gasoline engine oil and used hydraulic oil,other used machinery's lubrication oil.
Specifications
Brief Introduction About Sino-NSH
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc. We provide oil purifier machine for many famous brands like SIEMENS, ABB etc.(www.nshoilpurifier.com)
Industry Used Motor Oil Recycling Machine
(Change Black to Yellow)
I.Product Description
GER series Used engine oil regeneration system is particularly suitable to regenerate used internal combustion engine oil including diesel engine oil,gasoline engine oil and used hydraulic oil,other used machinery's lubrication oil.GER series are able to effectively remove colloid,oxid,acid,pitch,particles,impurities,water,gas in the used oil.Specially,GER can restore the color of used oil and remove the scent rapidly.
II.Features
1.Adopting high-precision stainless steel strainer with excellent mechanical intensity and long service life, Which is corrosion-resistant and high-temperature-resistant.
2.Two main filtering systems can ensure the GER works cotinuously by batch.
3.Completely removing water and harmful gas from the waste oil and recovering the color of the treated oil as fresh oil.
4.Simple operation,safe and reliable.
5.Low operation cost and maintenance,replacement expenses.
6.Environmentally friendly,no acid used during operation.
7.Heat preservation material which can keep heating high efficient and lower operation cost.
8.High peiformance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
9.Exhaust gas processing system can treat exhaust gas quickly and efficiently and make operation more environmentally friendly.
III.Edges of GER
* Two main filtering systems ensuring continuous work.
* No acid used during operation.
* Stainless steel made filters.
* Remove exhaust gas quickly and efficiently.
* Heat preservation material keeping high efficient heating.
* Turnkey Project.
* Purify blended oils.
* Low operation cost.
* Low maintenance and replacement expenses.
* High regeneration rate.
* Automatic reverse-washing system improving performance of filters.
* High performance security system.
* Small size, light weight, low noise.
IV.Technical Specification
Item | Unit | GER-1 | GER-2 | GER-3 | GER-4 | GER-5 |
Treatment Capacity | L/8-10hrs | 2000 | 4000 | 6000 | 8000 | 10000 |
Rate of Reclamation | % | 70 ∼ 90 | ||||
Working Pressure | Mpa | -0.095∼ 0.4 | ||||
Temperature | ℃ | 60∼200 | ||||
Working Noise | dB(A) | ≤70 | ||||
Heating Power | Kw | ≤192 | ||||
Inlet/Outlet pipe diameter | DN | 42 | ||||
Weight | Kg | 2000 | 3000 | 4500 | 6500 | 7200 |
