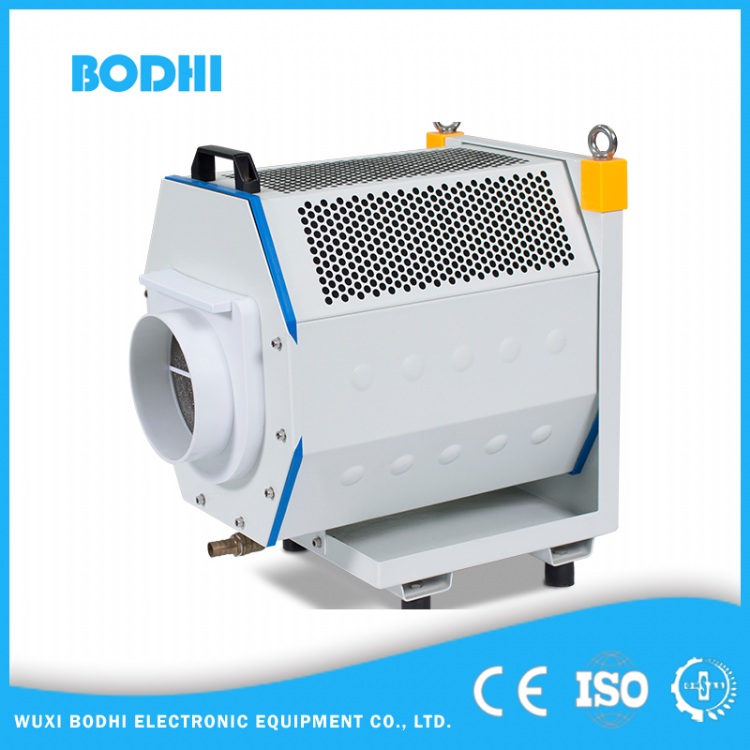

Industrial Centrifugal oil mist collectors/separators/eliminators
Model: HCY-W1
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Air Pollution Control Equipment
Characteristics
1.Filter---Adopt four filter layers, focus on the collection of the heavy oil mist; The filtration can be clean.
2.Anti-shocking---Enhanced shock absorber; Reduce the noise level
3.High quality electrical equipment---Adopt imported "DELIXI" electrical system; Carry out the standard of GB ISO4706.1-2002 second electrical level.
4.Customized--It can be customized by clients' demands
5.Low Noise---High performance of shock absorber.
Specifications
The product Description
The filtering efficiency: PM2.5A99%FPM0.5, 95%.
Input: 220/380V/3p 50Hz(customized^
Working noiseG<=60dbA
Way in: Horizontal
Way out: Lateral or side
Installation form: Top-mounted or side-mounted
Shell Life: 20 years
Environment temperature:-10J-50J
Environment humidity: <=80H
Brand Name |
BODHI |
Model |
HCY--W1 |
Volume(m3/h) |
500-2000 |
Pressure(Pa) |
350-1850 |
Power(W) |
370-1500 |
Voltage(V) |
380 |
Current(A) |
1.12-3.44 |
CNC Volume(T) |
1-8 |
Weight(kg) |
25-50 |
Installation |
Horizontally-mounted |
Material |
Superior alloy steel |
Filter Life |
8-12months |
Filtering Principle
1.Primary filter
2.Medium efficiency filter(intercepting)
3.High pressure filter
Working Principle
It appear vacuum negative pressure by high-speed rotating impeller , the oil mist will be inhaled into air inlet of oil mist filter.At first,the inhaled oil mist into the primary
filter,Liquid oil mist particles will be filter down by filter screen.Attached surface of
Filter screen and gathered into drops,Drip into the oil trap,formed first filtration.
The rest of the aerosol particles formed airflow under the impetus of the impeller,gathered liquid phase,intercept by the medium efficiency filter,gather drop into the oil trap again,formed twice gas filtration.The processed gas through high pressure filter, the third filter out. After purification, the air can be used for the interior circulation, the separated oil into the collector drum,it can be used again.
