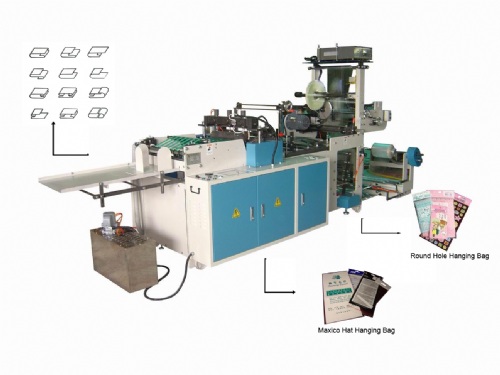

Bag making machien
Model: YS-01
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bag Making / Puffing / Inserting Machine
Characteristics
Fully Automatic: Steps such as slitting, hole - punching, folding, side sealing and adhesive tap attaching can be performed automatic and sequentially.
Equipped with:
1. Servo control system controls precisely printed bag's sealing and culling position.
2. 1200W ultrasonic is suited for the production of hanging bags with Mexico hat.
3. EPC edge tracer.
Specifications
Material: In PP, PE, OPP and BOPP from 0.02 up to 0.1mm thickness.
The max cutting size: the width up to 700mm, the length up to 600mm.
The production speed: from 60 up to 120 pieces per min, depending on the material quality, production size and the machine design.
