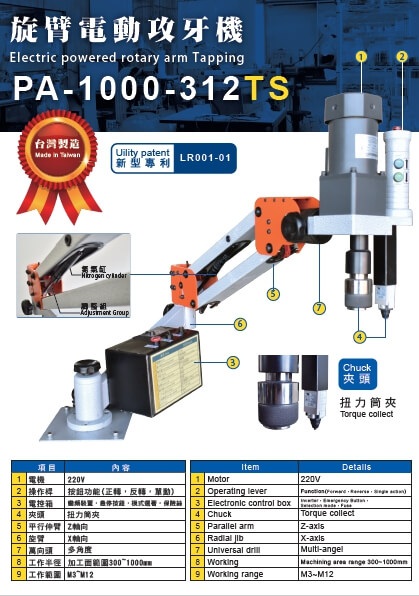

Rotary arm electric tapping # 3 1 2 T S , drilling machine
Model: P A - 1 0 0 0 - 3 1 2 T S
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
The purpose and characteristics of the Electric powered Rotary arm - tapping \ tools machine , 1 . For the C N C mechanical processing machine . Rachel sheet metal machine and metal plate . Aluminum castings . Aluminum extrusion mold Base . 1 - 1 . Steel bar. Bakelite boards and so on . Safe and efficient tooth tapping machining tool . 2 . Electric powered Rotary arm tapping machine main purpose : In the casting body , Working piece end face , Nuts or other through - hole or blind hole processing of internal thread processing equipment . 3 . According to the different types of power drive as Rotary arm tapping machine are divided electric , pneumatic tapping machine and other single - axis arm tapping machine of 3 single type . 4 . Electric Rotary arm tapping \ tools machine safety device : 4 V 1 . The use of precision torque clamp . There are overload protection device . Has been easy to blind hole torque control and Not easy to break or damage the tool . 5 . Swing arm tapping machine set speed < r . p . m .> Element:5 V 1 . As material type , Tooth hole tolerance with the oil to Porcelain chamfering . Machining chip smoothness , Drilling when the diameter tolerance setting as well . 6 . The Electric Rotating arm tapping \ tools machine as the slower of speed that greater and diameter of the attack , when faster then diameter to be smaller . 7 .The tool of depth standard : tooth attack specifications x 1.8 times deep < 3 times deep = deep hole tapping > .8 . M I T Logo of The tube collect quality and stability, good Disc film flexibility , Quenching standards , When the torque overload or infeed , the collect will be idle , reducing the probability of broken knife . * Swing arm Electric tapping machine use characteristics * 1 . Is the power of the processing equipment , Reasonable structure design , easy to use and efficient , maintenance V free cost - effective and so on . 2 .The motor is durable and the noise level is small , improving the production efficiency and saving the cost .
Specifications
< 1 > . # PA - 1 0 0 0 - 3 1 2 TS , Tools attack capability \ M 3 ~ M 1 2 , Maximum speed \ 4 0 0 r . p . m . Torsion force 0.47 Nm , Operating range \ 1 M , Motor \ 1 5 0 W \ 5 0 Hz , depth gauge function .
