GUIDEWAY AND SURFACE GRINDING MACHINE
Model: 30-15 SNC-Q 3030 X
Category: Machine Tools / Grinding Machines / CNC Surface Grinding Machines
Characteristics

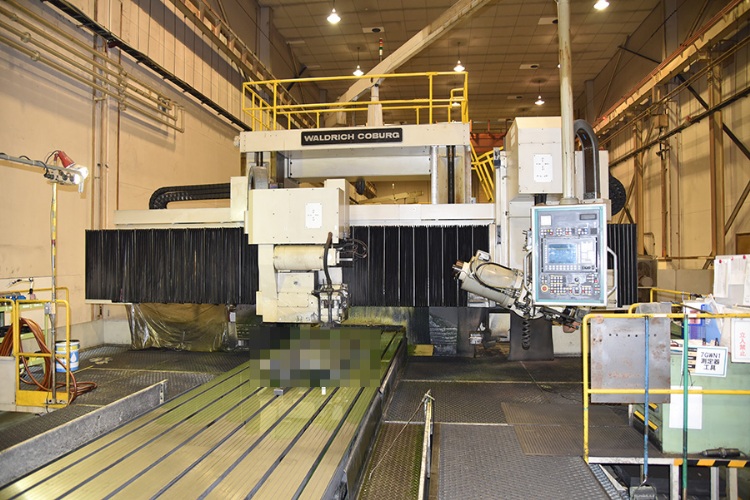

Coburg CNC Surface Grinder
Machine Specifications
Table width：1500 mm
Grinding：2000 mm
Clearance between the column covers：2220 mm
Grinding height：1500 ｍｍ
Grinding length：7000 ｍｍ
Table Drive （Hydraulic）
Permissible table load：5,000 kg/ｍ
Max.：13,000 kg
Table speed infinitely variable ：1-45 ｍ/min
Creep speed can be selected directly：5 ｍ/min
Peripheral Grinding Head P 30
Max. power of grinding motor available from a spindle RPM of 700 ：50 kw
Max. dimensions of grinding wheel：600 dia x 150 ｍｍ
RPM infinitely variable:500-1100 RPM
Horizontal Travel
Feed：1-12,000 mm/min
Step feed：1-200 mm
Jogging feed in steps of 0.001mm, feed range：0.001-0.099 mm
Vertical Trvel
Travel：250 mm
Feed：0.5-1500 mm/min
Jogging feed in steps of 0.001mm, feed range：0.001-0.099mm
Dressing Device
Indexing range of dressing slide：±60°
"(Precise indexing in 5 degree increments is ensured by a ""Hirth""serrated coupling)"Dressing speed infinitely variable：50-350mm/min
Number of dressing diamonds：1
Universal Grinding Head：U 15
Max. power of grinding motor available from a spindle RPM of 950 ：20kw
Max. dim. Of peripheral grinding wheel ：600 dia. ｘ 100 mm
RPM infinitely variable ：500-2,500 RPM
Indexing range of grinding spindle ：±110°
"(Precise indexing in 1 degree increments is ensured by a ""Hirth"" serrated coupling)"Indexing speed：360°/min
Horizontal Travel
Feed：1-12,000 ｍｍ/min
Step feed：1-200 ｍｍ
Jogging feed in steps of 0.001mm, feed range：0.001-0.099 ｍｍ
Vertical Travel
Travel：1,000 ｍｍ
Feed：0.5-2,000 mm/min
Step feed：1-200 mm
Jogging feed in steps of 0.001mm, feed range：0.001-0.099 mm
Number of preset diamonds：5
Wet Grinding Equipment
Delivery of coolant pump：150 L/min
"Relation between coolant temperature and ambient temperature can be controlled to a toerance of "：Centigrade±0.5
Coolant：Water emulsion
Specifications
Coburg CNC Surface Grinder
Machine Specifications
Table width：1500 mm
Grinding：2000 mm
Clearance between the column covers：2220 mm
Grinding height：1500 ｍｍ
Grinding length：7000 ｍｍ
Table Drive （Hydraulic）
Permissible table load：5,000 kg/ｍ
Max.：13,000 kg
Table speed infinitely variable ：1-45 ｍ/min
Creep speed can be selected directly：5 ｍ/min
Peripheral Grinding Head P 30
Max. power of grinding motor available from a spindle RPM of 700 ：50 kw
Max. dimensions of grinding wheel：600 dia x 150 ｍｍ
RPM infinitely variable:500-1100 RPM
Horizontal Travel
Feed：1-12,000 mm/min
Step feed：1-200 mm
Jogging feed in steps of 0.001mm, feed range：0.001-0.099 mm
Vertical Trvel
Travel：250 mm
Feed：0.5-1500 mm/min
Jogging feed in steps of 0.001mm, feed range：0.001-0.099mm
Dressing Device
Indexing range of dressing slide：±60°
"(Precise indexing in 5 degree increments is ensured by a ""Hirth""serrated coupling)"Dressing speed infinitely variable：50-350mm/min
Number of dressing diamonds：1
Universal Grinding Head：U 15
Max. power of grinding motor available from a spindle RPM of 950 ：20kw
Max. dim. Of peripheral grinding wheel ：600 dia. ｘ 100 mm
RPM infinitely variable ：500-2,500 RPM
Indexing range of grinding spindle ：±110°
"(Precise indexing in 1 degree increments is ensured by a ""Hirth"" serrated coupling)"Indexing speed：360°/min
Horizontal Travel
Feed：1-12,000 ｍｍ/min
Step feed：1-200 ｍｍ
Jogging feed in steps of 0.001mm, feed range：0.001-0.099 ｍｍ
Vertical Travel
Travel：1,000 ｍｍ
Feed：0.5-2,000 mm/min
Step feed：1-200 mm
Jogging feed in steps of 0.001mm, feed range：0.001-0.099 mm
Number of preset diamonds：5
Wet Grinding Equipment
Delivery of coolant pump：150 L/min
"Relation between coolant temperature and ambient temperature can be controlled to a toerance of "：Centigrade±0.5
Coolant：Water emulsion
