Oil Mist Collectors

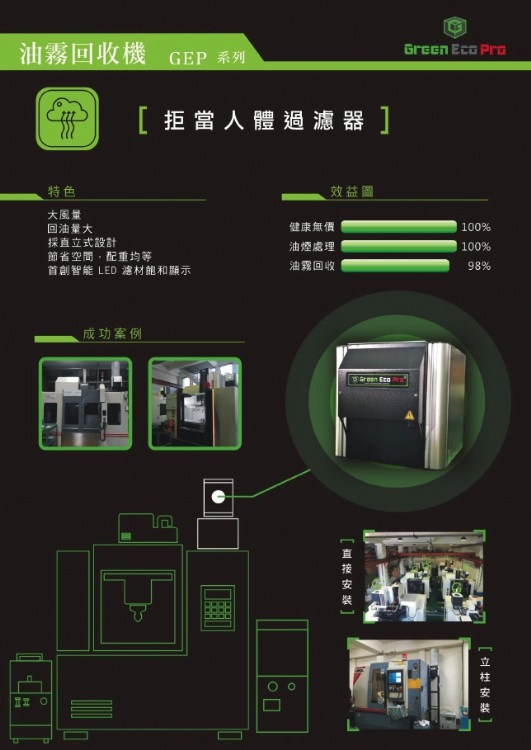

Model: Oil Mist Collectors GEP Series
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
Oil Mist Collectors
GEP Series
When the high-speed processing material that produce heat, and then heat to steam out the water, if the coolant tank of waste oil or other oil without correct handle, this time Processing heat will produce oil mist.
With one integrated mechanical design aesthetics
High efficacy with Mini Size
Low Decibel 65 db
Vibration rate G2.5mm/s
Unique development 2D turbine Wheel
3D Filter Material
Intelligent Alert
Specifications
Model | GEP-160 | GEP-200 | Unit |
---|---|---|---|
Power | 380/220 | V | |
Motor Power | 0.37 | kw | |
Frequency | 50/60 | Hz | |
Noises Volume | 65 | dB | |
Air Volume | 16 | 20 | M3/min |
Inhalation Caliber | 130 | 150 | mm |
Most Static Pressure | 1280 | 1430 | Pa |
Net Weight | 36.5 | 42 | kg |
Dimension | 385*407*447 | 420*458*482 | mm |
