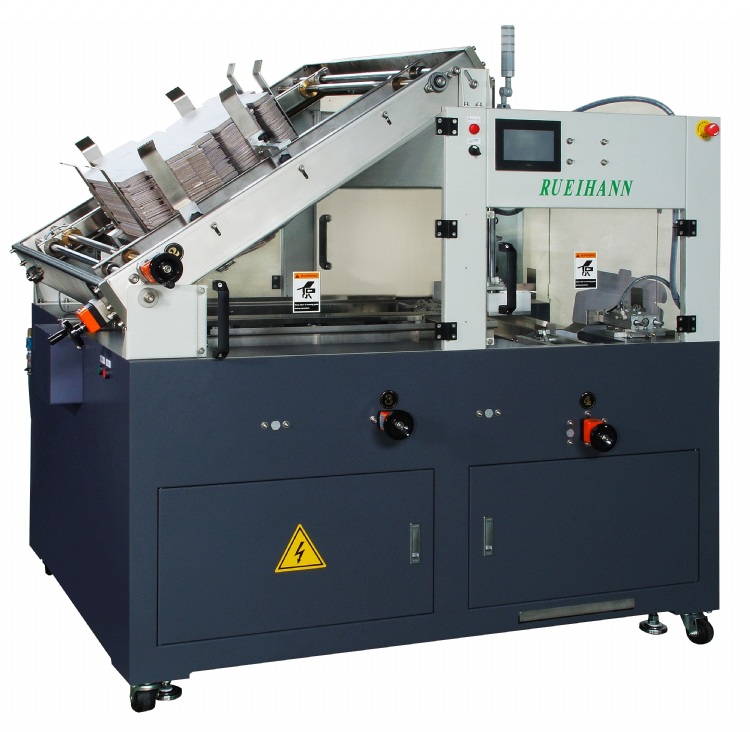

Carton erector(Fold bothe sides)
Model: RH-206D
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Automatic Cartoning Machines
Characteristics
1. It can fold various cartons. The carton can be automatically folded without any glues.
2. Application scopeGfoodBshoesBcosmeticBelectronic industry boxes..and so on.
3. Machine's size is small.
4. It is easy to adjust sizes of cartons.
5. Easily operation and user-friendly with touch-screen control (HMI) and accurate carton
formation with high speed PLC.
6. EconomicBeffectiveness and reduce cost.
7. Machine can move to anywhere at your working place.
- RUEI HANN MACHINERY CO., LTD. -
Specifications
1. Power Source : AC220V / 3-Phase , 50/60 Hz
2. Electronic : PLC control
3. HMI : Touch screen is easily operating.
4. Air pressure : 5kg/cm2
5. Air Consumption : 3HP
6. Machine size : 2040L x 1395W x 2040H mm
7. Capacity : 4 - 12 pcs / per minute
8. Carton size : Width : 300 - 400 mm , Depth : 150 - 195 mm, Height : 85 - 105
mm
P.S. 1. Customized machine is welcome.
2. Distributer and agent are welcome.
3. Request quotation (Please e-mail below information to us.)
3.1 Carton sizes (L x W x H mm)
3.2 Required speed
