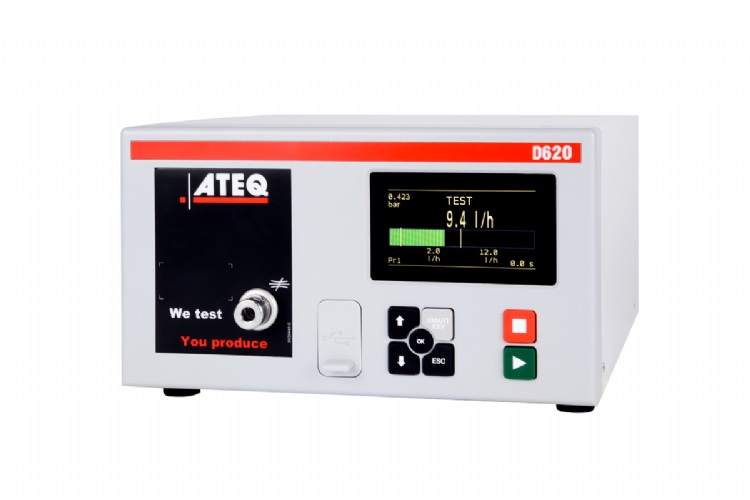

Flow tester
Model: D620
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Main features
D620_highlights
• Flow measurement in direct or indirect testing
• Continuous measuring mode
• Wide flow measurement range
• USA, S.I. and customer units
• Measurement in standard or customised conditions
• Recalculated flow at the nominal pressure
• Measurement element fully integrated into one module
• 128 programs
• Mechanical or electronic regulator from vacuum to 10 bar
• setting on line (via USB)
• 2 languages (English + other one)
• Manual calibration on front panel with calibrated leak
• Data storage on internal memory or USB key
Environment
• ROHS standard
Flexible communication format
• RS232: Printer, modbus RTU
• Slave USB: PC supervision (WinAteq 300, sesame)
• Master USB: USB key to transfert (parameters, results, …)
• Option Fieldbus: Profibus, devicenet, profinet, Ethernet/IP, Modbus RTU
