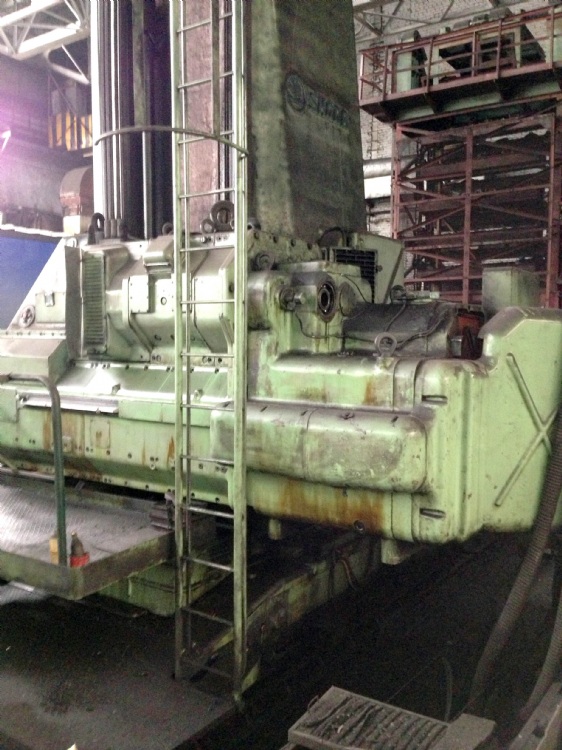

Horizontal Boring and Milling Machine W200A
Model: SKODA W200A
Category: Machine Tools / Milling Machines / Horizontal Milling Machines
Characteristics
Horizontal Boring and Milling Machine W200A
Manufacturer: SKODA
Condition: The machine is in good working condition, can be checked under power
Equipped with: The machine is equipped with rotary table E-20 2200 x 2200 mm, capacity 20 tn. (as an additional equipment, the machine can be equipped with rotary table 3600 x 3600 mm, with capacity of 50 tons)
Spindle diameter, mm 200
Spindle torque, Nm 35000
Main motor power, kW 77
X axis (column), mm 4000
Y axis (headstock), mm 4000
Z axis (spindle), mm 1600
W axis (ram), mm 2000
Ram size, mm 520 x 520
Bed width, mm 2000
Weight of machine, kg 86200
