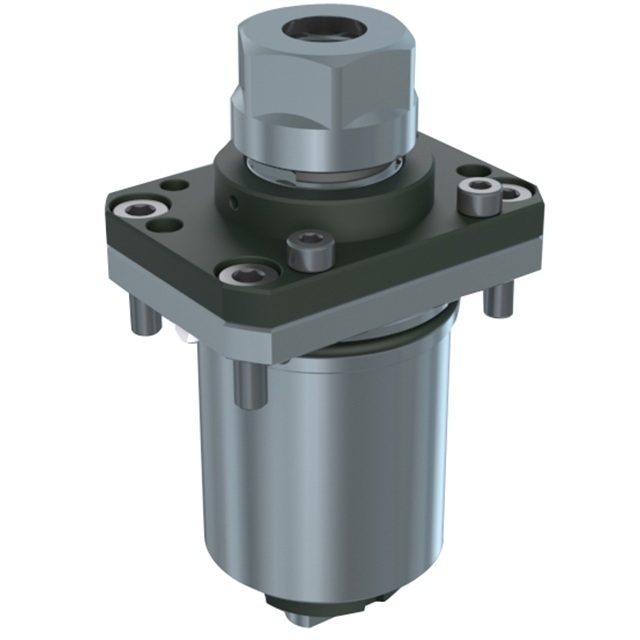

Tsugami-Drilling/milling unit for sub spindle
Model: TSBB116301
Category: Machine Tools / Lathes / CNC Lathes
Characteristics
SONG GIA whole series of products are 100% made by our factory in Taiwan, producing all kinds of bmt tool holders, boring bar holder,turning tool holder, drilling / milling multiple live tool holders; all kinds of tool holders have high rigidity and high precision, and can be widely applied in various turret types.
SONG GIA holds a rigorous quality system and quality control process:
100% inspection on key parts.
Verify the roundness and concentricity accuracy of each center bearing to ensure the circumferential vibration tolerance of all live tool holders is within 4µm.
Finished product inspection before shipment of all live and non-live tool holders.
SONG GIA provides you with diversified CNC drilling/milling whole series options to meet your various processing demands. We also provide customized design and production according to customers different requests.
Specifications
Machine References : Tsugami
- BO265/BO266/BO325/BO326/BO385
Detailed specifications
Speed ratio : | 1:1 |
Maximum speed : | 6000RPM |
Tool clamping : | ER16A |
Reference code : | 3282-Y041 |
