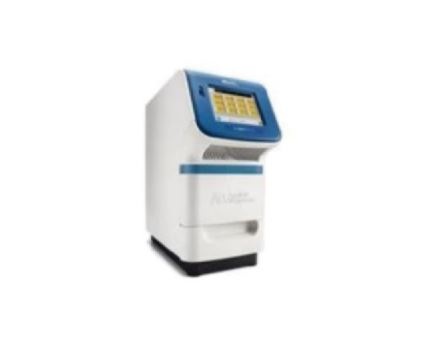

UMAX Instant quantitative PCR
Model: UMAX Instant quantitative PCR
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
Key Features
Description of Product
Instant quantitative PCR
Real-time quantitative PCR
The real-time quantitative PCR system supports many real-time PCR applications, including:
•SNP genotyping
•Gene expression analysis
•MicroRNA expression
•Protein expression
•Transport analysis
•DNA Testing
•Viral load analysis
The accompanying software supports multiple analysis methods, including:
•Standard curve (absolute quantitative)
•Relative standard curve
•Compare Ct¡]£G£GCt¡^¡]relative quantification¡^
•Genotyping and presence/absence
•Melting curve analysis (as a standalone application)
• High resolution melting (as a standalone application)
Welcome to send your inquiry with all size to
umax@umax-tech.com.tw
TEL: +886-22903-9203
Specifications
Calibration dye¡G | VIC®¡ASYBR®Green I¡AROX™¡AJOE™¡ANED¡AFAM™¡ATAMRA™ |
---|---|
Capacity¡G | 96 x 0.1 ml tubes¡A12 x 8 tube strips¡A1 x 96 well plate |
Detection method¡G | SYBR¡APrimer probe detection |
Dimensions | 24.6 cm/9.7 inches (width) 42.7 cm/16.8 inches (length) 51.2 cm/20.2 inches (height) |
Format¡G | 96 well plate¡A8 test strips¡A0.1 ml tube |
High-throughput compatibility¡G |
Multiplexing |
Optics¡G | 4 emission filters, blue LED excitation source, photodiode |
Passive reference dye¡G | ROX¡]independent test tube¡^¡Awithout ROX¡AROX¡]premix¡^ |
Peak block slope¡G | 4.6°C⁄sec |
Reaction speed¡G | Fast, standard |
Reaction volume range¡G | 10-30 µl (Standard curve experiment: 40 µl verified in standard mode) |
Run¡G | <2 hours/operation (standard mode) <40 minutes/operation (fast mode) |
Sample rise rate¡G | Quick mode: ±2.2°C⁄sec, standard mode: ±1.6°C⁄sec |
Temperature accuracy¡G | Display temperature 0.25°C¡]35 to 95°C¡^ |
Temperature range (metric)¡G |
4-100 °C |
Temperature uniformity¡G |
Set point/display temperature 0.25°C (35 to 95°C) |
Thermal cycle system¡G | Peltier-based system |
Weight¡G | 24 kg (53 lbs) |
