Dog Chews Rawhide Bone Pressing Machine
Model: Pet Food Machine
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Other Food Making Machines
Characteristics
Pet Food Machine
Specifications

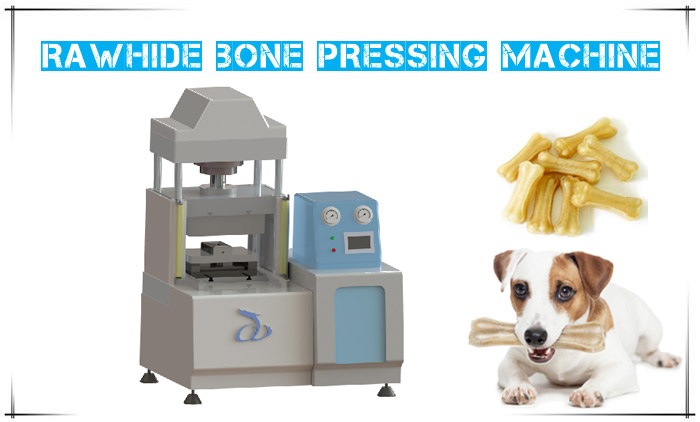

Dog Chews Rawhide Bone Pressing Machine
Technical Features:
Dog Chew Bone Machine has high press speed to increase efficiency.
Chewing Bone Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.
Rawhide Bone Pressing Machine Advantage:
This Dog Bone Machine is type of Flour Column and Three Board, the up-most output pressure is adjustable.
Equipped with safety sensor to ensure the operator’s safety. Also the foot press pedal is double-layer design to prevent any misoperation.
The parts are processed by CNC boring and milling machine, the gears are processed by German gear grinding machine. The crankshaft, gear tooth and other friction parts are made of alloy steel, annealing process.
Pneumatic dry-friction clutch & brake, low noise, and long service life (wet clutch&brake is available).
Model |
Suitable Bone Size |
Pressing Pressure |
Working Platform Size |
Dimension |
QL-35 |
1.5, 2 and 3 inch |
35ton |
350 x 350mm |
1300 x 1000 x 1900mm |
QL-63 |
4, 5 and 6 inch |
63ton |
420 x 400mm |
1400 x 1100 x 2100mm |
QL-80 |
7, 8 and 9 inch |
80ton |
500 x 450mm |
1700 x 1200 x 2150mm |
QL-120 |
10, 11 and 12 inch |
120ton |
600 x 600mm |
1850 x 1400 x 2700mm |
