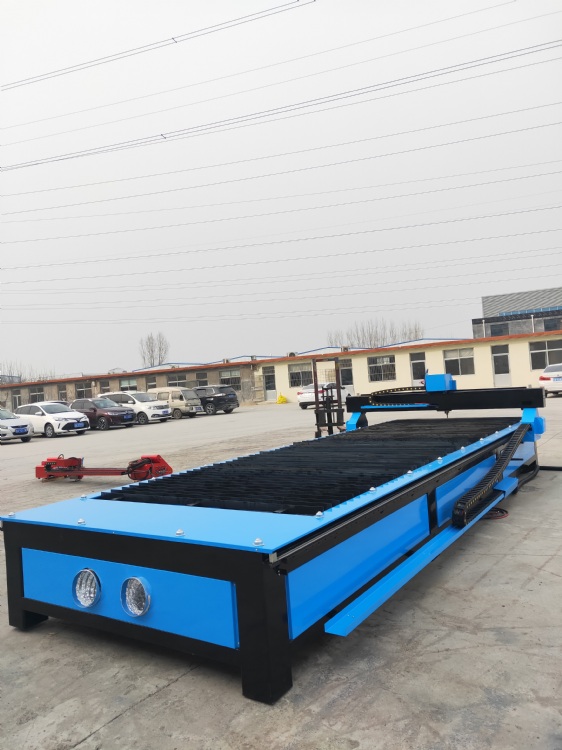

DESKTOP PLASMA CNC CUTTING MACHINE
Model: TPL1560
Category: Machine Tools / Welding and Cutting Machines / Gas-Operated Welding Machines
Characteristics
The advantages of our Desktop CNC cutting Machine:
1. We produce this line many years, have rich experience and professional knowledge, will let you get the most suitable machine with the right configuration. This ability can let you avoid many mistake and avoid some trouble.
2. If use the plasma cutting machine to cut the the thick meal, have to use the arc height adjust system, while our height adjust system use the high sensor, one minute can send out 12,000 signal per minute, so our cutting quality more better and cutting speed much faster.
3. We equipped the two fan for take the cutting smoke out from the room, front fan will blow to back, the back fan will exhaust the smoke out from the machine and out from the room. This way, will efficiency to let the workshop in the good environment.
4. All our desktop cnc cutting machine have to be checked three times, then allow to send out ,and finally will put one 8GB flash disk into the package, when the customer received the machine, can easy check the video from the 8GB flash disk ,then do the easy operation, in the video nearly like hand by hand do the teaching job, so can let the customer in the shot time to let the machine create the profit.
Specifications
Model 1530 120A Plasma cutting machine (high configuration)
X/Y working area : 1500*3000mm
Z working area: 150mm
Packing dimension:2280mm*3950mm*1850mm
Lathe bed: Very thick steel structure
Machine Power: 8.5kw
Working voltage: 380V three phase 60hz
Reposition precision: 0.02mm
Processing precision: 0.2mm
Maximum cutting speed: 12000mm/min
Torch Height control mode: Automatic
Cutting thickness: Max 25mm carbon steel
Plasma power supply: LGK120A
Control system: Starfire
Motors: Stepper motor
Software: Starcam
Weight: 1400KG
Plasma Air Pressure: Max.0.8Mpa
Working Temperature: -10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension: 7 Inches
