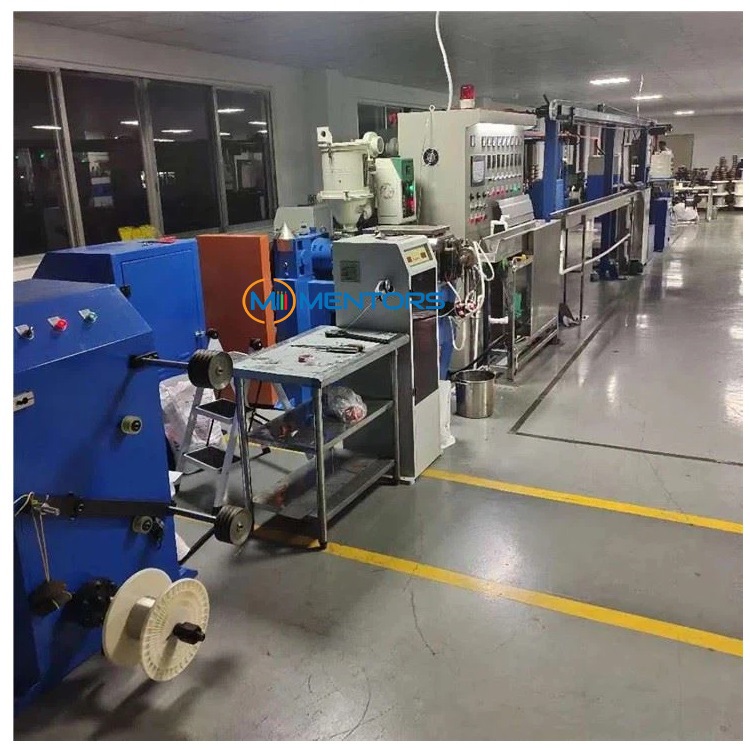

Teflon cable making machine
Model: SY-50
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Industrial Instruments & Equipment
Characteristics
This machine is used for insulating or sheathing the Teflon wires and cables.
Specifications
1.Parameters:
|
Type |
SY-50 |
|
Core diameter (mm) |
1.5-5 |
|
Screw length/diameter |
25:1 |
|
Temperature control |
4+2 |
|
Heating power(kw) |
18 |
|
Main servo motor(kw) |
11 |
|
Traction servo motor(kw) |
3.7 |
|
Max extrusion capacity(kg/h) |
45 |
|
Max line speed(m/min) |
180 |
|
Pay-off |
Shaft active pay-off 300-500 |
|
Take-up |
400-630 shaft take-up machine with motor;3kw+inverter+screw traversing |
|
Size (m) |
20×1.7×2.1 |
|
Weight (T) |
8 |
2.Advantages:
2.1 Quality control:Outer diameter detection feedback device to control product outside diameter, concentricity etc.
2.2 Control the tension of whole line accurately.
2.3 Applied to P.T.F.E,FEP,PFA,ETFE.
