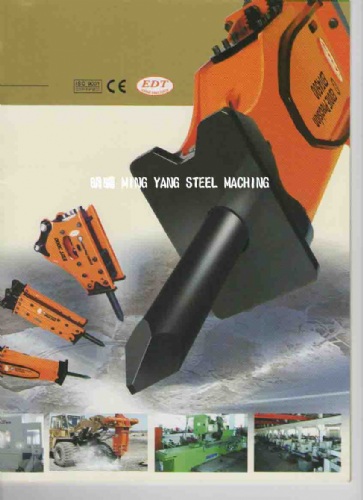

Hydraulic Breakers
Model: EDT4500
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pneumatic and Hydraulic Machinery
Characteristics
About us: http://tw.myblog.yahoo.com/mingyang899/
SIDE TYPE BREAKERS:
*Reducing total-lengty
*More convenience to break objects.
*Easy maintenance
TOP TYPE BREAKERS:
*Easy-control and easy-position make it more convenience to excavation work.
*Without side-weight,reducing the rate of chisel breakage.
SIL ENCED TYPE BREAKERS:
*Low noise level
*Full-closed bracket protects the main body from damage
APPLICABLE FIELD:
*Mining--Mining,Second-time breaking
*Metallurgy--Clearing slag,Demolition of furnace and foundation
*Road--Repairing, Breaking,Foundation work
*Railway--Tunneling' Demolition of bridge
*Construction--Demolition of bulinding and reinforced concrete
*Ship repairing--Clearing clam and rust from the hull
*Other--Breaking frozen mud
Specifications
ITEMS UNIT EDT4500
MAIN BODY WEIGHT KG 1600
TOTAL WEIGHT KG 3909
LENGTH MM 3617
WIDTH MM 760
OIL FLOW L/MIN 210~290
WORKING PRESSURE KG/CM2 160~180
IMPACT RATE BPM 200~350
TOOL DIAMETER MM 175
APPLICABLE EXCAVATOR CLASS TON 40~55
