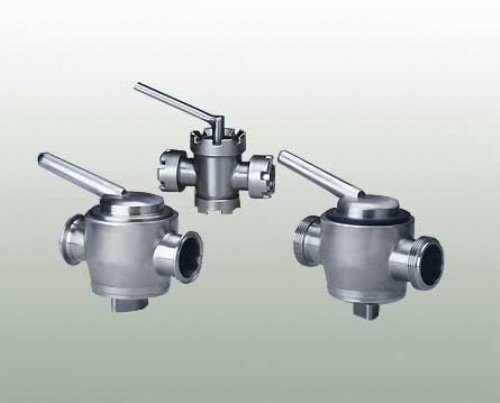

PLUG VALVE
Model: WELD, CLAMP, MALE END
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Parts for Food Making Machines
Characteristics
2WAY OR 3 WAY Plug valve are excellent sanitary devices with minimal pressure drops. This kind of valve is constructed with a special taper which has been carefully designed to reduce wedging and galling.
Specifications
Size: 1"~ 3"
Material: SS316 only
Finish: 3A sanitary standard
Connection: Clamp End, Butt Weld, Bevel Seat, IDF Male End, and other connections are available
Plug available: Stainless Steel, Rubber
Type: handle design only
Pressure:
Plug valves are recommended only for low-pressure applications 50 PSI maximum.
We test it for security up to 150 PSI.
