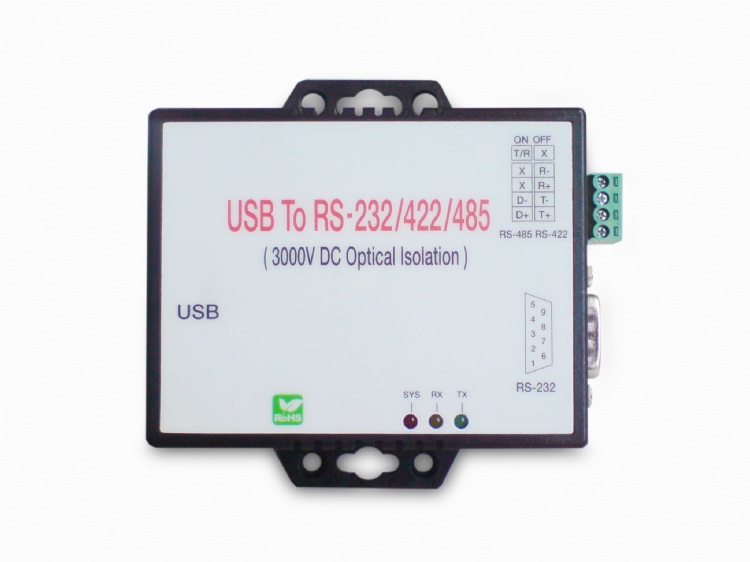

RS-232/422/485 To USB Converter
Model: US-101-I
Category: Automatic/Industrial Machines & Equipments / Auto-Control Panel Design/Installation / CNC Controllers for Machine Tools and Industrial Machinery
Characteristics
3000V DC Isolation Protection
Support Windows 7 / Vista / XP / 2003 / 2000 / Mac OS / Linux
Easy Configuration
RS-232 / 422 / 485 ¡Ð Auto Detection
Specifications
USB
Chipset¡GSilicon Labs CP2102
Compliant¡GUS 1.0, 1.1, 2.0
Connector¡GUSB Type B
Baud Rates¡GFull speed 12 M bps
Serial Port
Port¡G1 Port ( RS-232, RS-422, RS-485 Auto Detect )
Port Type¡GRS-232 : DB9 male
Port Type¡GRS-422 / 485 : Terminal Block
Receive Buffer¡G576 bytes
Transmit Buffer¡G640 bytes
Transmit / Receive : Signal 3000V DC Optical Isolation Protection
RS-232¡GDCD, RX, TX, GND, RTS, CTS, DTR, DSR
RS-232 Baud Rate¡G300 ~ 921.6 K bps
Parity¡GNone, Odd, Even, Space, Mark
Data Bits¡G5, 6, 7, 8
Stop Bits¡G1, 1.5, 2
RS-422¡GRxD+, RxD- , TxD+, TxD-
RS-485¡GData+, Data-
RS-422, RS-485 ( Over current / Surge Protection )
RS-422 / 485 Baud Rate¡G300 ~ 230.4 K bps
Mode¡G4-wired RS-422, 2-wired RS-485
Pull High / Low¡G1K / 1K Ohm
15KV ESD Protection
Driver Support
Support¡GWindows -98SE / 2000 / XP / Server 2003 / 7 / VISTA / Support¡GMac Osx / Os9 /
Support¡GLinux 2.4 / 2.6
Power
USB Bus Power : 5V, 50mA
3000V DC to DC Isolation Protection ( For RS-232 / 422 / 485 )
Environment
Operating Temperature¡G0 ~ +60¢J
Storage Temperature¡G-20 ~ +85¢J
Humidity¡G5 ~ 95% RH
Dimensions
85 * 80 * 28 mm ( W * D * H )
Weight
90 g
Regulatory Approvals
CE / FCC
RoHS
Warranty
1 year
