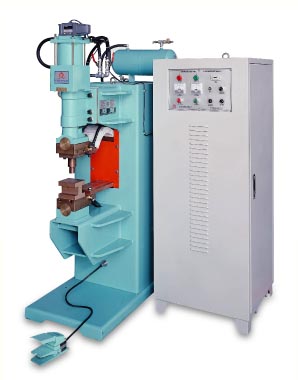

Condenser Welding Machine
Model: DJ-G150(DJ-G10~DJ-G300)
Category: Machine Tools / Welding and Cutting Machines / Spot Welders
Characteristics
The key components are imports from Europe, the USA and Japan.
1.Japan air-operated components
2.The USA and Japan SCR (Silicon Controlled Rectifier)
3.The capacitor same as the modern Japanese models- a power storage type, special purpose capacitor for instant charge and discharge.
4.The USA and Japan components for controlling system.
5.Available models-vertical type, bed type, air pressurized type and foot-pressurized type for general spot welding, convex welding, single side and two side welding.
6.Output/input is separated from power source. 7.Minimum power is required. High power factor and short discharge time save electricity obviously.
Instant discharge time between 0.003~0.006 second ensures minimum heat loss. Electrodes have a long service life. Quality welded dots have no oxidizing surfaces, and look good.
Specifications
1.Model(Specification): DJ-G150(DJ-G10~DJ-G300)Rated 2.Capacity(KVA): 15(1.0-30)
3.Rated Voltage(V):According to customer's requirement
4.Electrode pressure(KGF): 800(90-1400)
5.Cooling water(L/min): 6(AIR-8)
