CNC BED MILLS

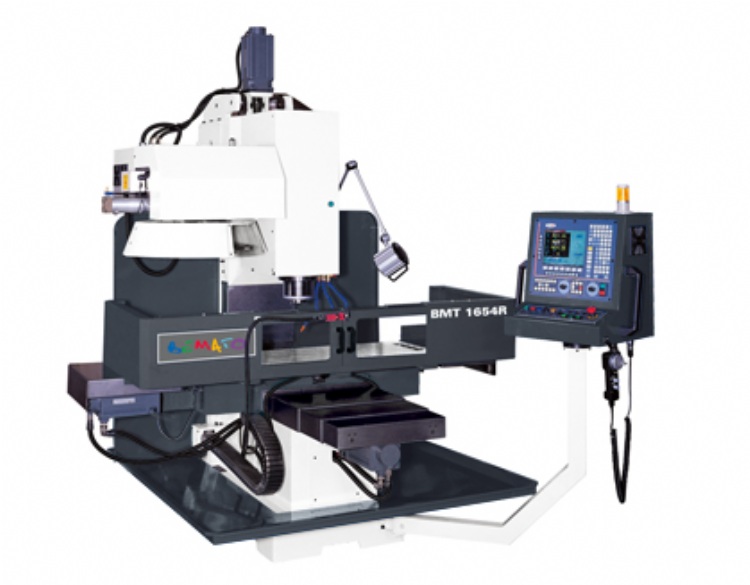

Model: BMT 1654R
Category: Machine Tools / Milling Machines / Bed Type CNC Milling Machines
Characteristics
1. High tensile and stress relief meehanitr castings.
2. Base, Column, saddle and tablee are well ribbed for the best rigidity.
3. Table, Xaxis dovetail way and Y, Z axis box ways are flame hardened and precsision ground.
4. All mating surfaces of slide wats are coated with Turcite-B and precsision scrapped.
5. Z axis counter weight ensures smooth movement.
6. High precision ball screws on all three axis with direct driving coupling to eliminate backlash.
Specifications
1. Table size : 400×1370mm
2. X, Y, Z, travel : 1000×508×600mm
3. Spindle motor : 10HP
4. Spindle taper : BT40 / CAT40
5. Ball screw pitch : 10mm
6. Saddle size : 320×1220mm
7. Y Slide way width : 450mm
8. Z Slide way width : 300mm
9. Spindle center to column surface : 530mm
10. Spindle to table : 100~700mm
11. Rapid traverse rate : 20 m/min
12. Max.cutting feed rate : 5 m/min
13.Net weight : 3000kgs
14.Floor space with table guard : 3500×2500×2520mm
