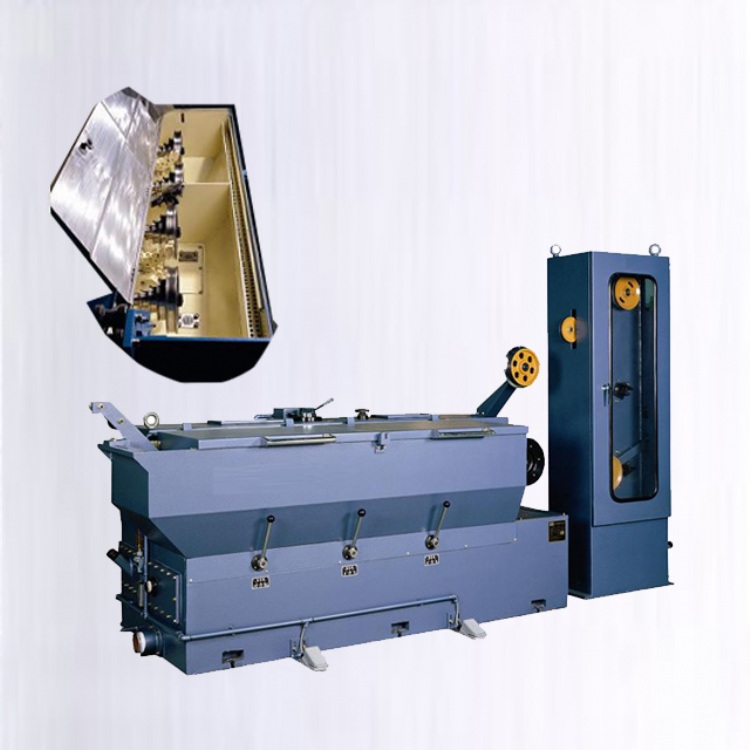

copper wire drawing machine
Model: 17D
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Straighteners
Characteristics
Intermediate wire drawing machine:
We offer ZL250/17 Intermediate Wire Drawing Machine.
Machine type: 4 capstans horizontal type
Drawing speed: 1800mpm
Control system: Switch control or computer control, as per your preference;
Motor control: Dual inverter control
Input size: 2.60mm~3.50mm
Output size: 0.40mm~1.60mm
Slip ratio of machine: 18%
Fix speed capstan slip ratio: 13%
Transmission type: High precision gear
Capstan: Whole type plasma capstan
Capstan Dia.: 250mm(Max.)
Spool bobbin: 350mm~630mm
Bobbin loading&unloading type: Pneumatic shaftless stringency
Traversing unit: 90W belt-type gear motor
Main Motor power: 75HP(55Kw)
Take-up motor(Spool motor): 18.5HP(15Kw)
Revise system: Coiling under automatic control of frequency converter
Detecting device: Cylinder swing-beam buffer rod
Tension control: By air pressure adjustable
Max. Loading capacity: 500kg
Lubrication type for bearing: Oil immersed
Lubrication oil capacity: 100litter/minute
