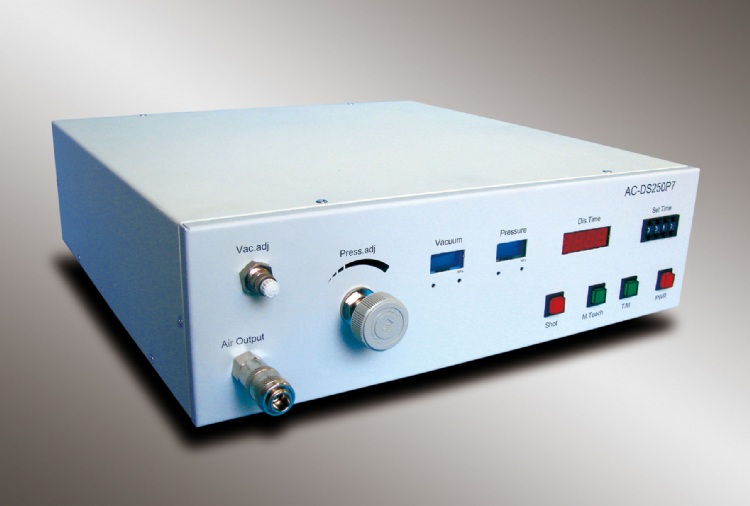

AC-DS250P7 (Precision Pneumatic 250 Glue Liquid Dispenser)
Model: AC-DS250P7
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
Glue Liquid Dispenser , precision adj. of pressure and .All digital display pneumatic dispenser.
Specifications
Specifications:
Control circuit: Microcomputer control
Control mode: Teach or Normal
Display Timer mode: 7-Segment Led
Pneumatic method: Patent
Dispensing pressure: Precision, 0.7MPa (max) and 7-Segment Led
Dispensing set time: 0.001 sec. (step)~ 9.999 sec. (max)
Vacuum pressure: -20kPa (max) and 7-Segment Led
Shot mode: Timer, Manual or Reshot(Option)
Monitor: Watchdog timer
I/O signal: In. =Contact or Non contact
Out. =Contact
Supply air pressure: 0.8MPa or less
Power source: 100~240Vac 50/60 Hz
Dimension: W350 x D350 x H110mm
