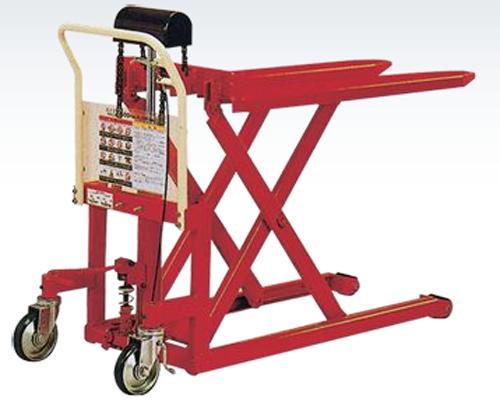

Skid Lifter - Manual Powered Type
Model: LV50 / LV50N / LV50SS / LV50NSS/LV50W/LV100/LV100W
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Conveyor Systems
Characteristics
.
Specifications
Model Capacity(kg) Fork Width(mm) Fork length(mm) Fork Height(mm) Power Weight(kg)
Min Max
LV50 500 520 1080 83 833 Pedal 101
LV50N 500 460 1080 83 833 Pedal 100
LV50SS 500 520 809 83 603 Pedal 88
LV50NSS 500 460 809 83 603 Pedal 87
LV50W 500 685 1080 83 833 Pedal 106
LV100 1000 520 1080 83 833 Pedal 136
LV100W 1000 685 1080 83 833 Pedal 160
