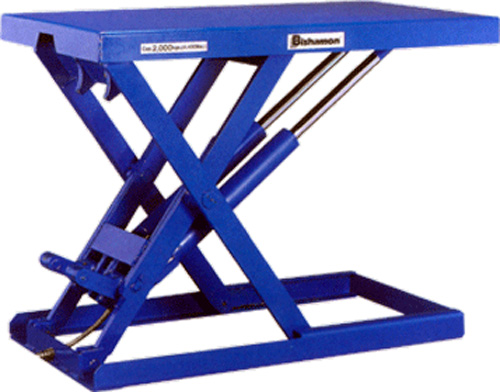

Super Low Profile Lift Table
Model: LX25SB / LX25LB / LX50SB / LX50LB/LX100N/LX100W
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Conveyor Systems
Characteristics
.
Specifications
Model No. Capacity(kg) Vertical Travel(mm) Table Size(mm) Min. Height(mm) Max. Height(mm) Weight(kg)
LX25SB 250 470 520x810 59 529 70(29)
LX25LB 250 700 520x1,010 59 759 88(29)
LX50SB 500 470 520x810 60 530 76(29)
LX50LB 500 700 520x1,010 60 760 95(29)
LX100N 1,000 900 520x1,280 76 976 162(32)
LX100W 1,000 900 780x1,280 76 976 183(32)
LX200N 2,000 900 732x1,350 95 995 298(45)
LX200WM 2,000 900 1,000x1,500 95 995 378(45)
LX200WL 2,000 900 1,000x2,000 95 995 405(45)
