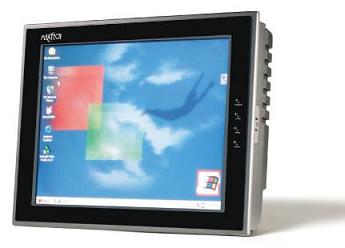

Touch Panel IPC
Model: MTW121-TFT
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
http://www.maxthermo.com/
Industrial field applications/Building automation/PLC controller/Medical instruments
Plastic extruding chassis with the accessible HDD.
Power/LAN/Sys status indicators on the front.
Easy to connect with I/O interface along the edge.
Highest system performance with 1 MB SRAM data memory.
Stable 8-wires resister touch screen sensor and controller.
Reliable system design utilizing top-grade solid-state capacitor on the CPU board.
Integrated high brightness and contrast ratio LCD display.
Specifications
http://www.maxthermo.com/
Items Specifications
CPU VIA EDEN 733M Hz
Display TFT 24 bits
RAM/Memory Size SODRAM 256M Bytes(UP TO 512M)
Battery Backup Build-in plus external battery support SRAM 1M Bytes
Resolution 800X600 or 1024x768
Brightness 200 or 300 cd/m 2
Communication Port COM1 RS232 D-sub 9pin -male
COM2 (optional)
COM3 RS232/422/485 D-sub 25-male
Power Supply AC 100-240V
Parallel Port SPP/EPP/ECP DB-25 port
Key/Mouse 2xPS2 port
USB Port 2xUSB 1.1 HOST
Ethernet 10/100 Base-T wake up on LAN
Audio Stereo Audio connector Microphone input
Others PC-104-plus extension card(optional) 3.5" 20G H.D.D.
Dimension 315(W)X241(H)X68mm
Cutout Dimension 302(W)x228(H)mm +/-0.5mm
Weight 3.5Kg
Touch screen 8-wire analog resistance
Touch screen life 1 million activate minimal
Operating temperature 0-50 degree
Storage temperature -20-50 degree
