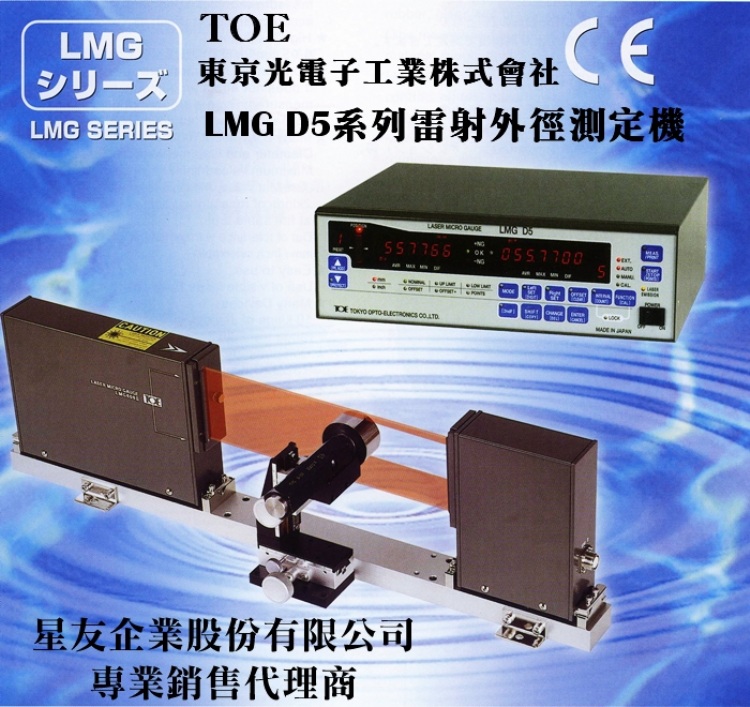

Series NON CONTACT DIMENSION MEASURING METER
Model: LMG D5-126¢º,LMG D5-305¢º,LMG D5-606¢º,LMG D5-805¢º
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
¡¯Ultra high speed measurement
The laser beam scanning speed of 350m/sec¡]LMG D5-606¢º¡^and scanning frequency of 1800 scans/sec allow it to measure with high speed and high accuracy an object which moves or vibrates.
¡¯High resolution
0.05£gm¡]LMG D5-016¢º¡BLMG D5-126¢º¡BLMG D5-305¢º¡^.
¡¯Non-contact measurement
It does not affect an object to be measured. Even a soft or hot object can
be measured without difficulty.
¡¯Many convenient functions
Diameter and Gap measurement.
Maximum value Minimum value and Max-Min value, Mean value, Etc.
2kinds of measuring value are displayed at the same time.
Out of tolerance warning and alarm output.
mm/inch selectable
¡¯Easy to use
Use of visible laser. Easy calibration.
¡¯Many Devices
10kinds of devices cover a measuring range from 0.10mm to more than 1m.
¡¯Computer interface
RS-232C,Option¡GGP-IB, Centronics and BCD.
¡¯Analog output for analog recorder
¡¯High reliability
Specifications
Åã¥Ü¾¹DisplayD5«¬ÂùÅã¥Ü¹õÅã¥Ü¾¹¡A¥i¤Á´«mm/inch.
»s³y°ÓManufacturer ªF¨Ê¥ú¹q¤l¤u·~®è¦¡·|ªÀ
«~µPBrand TOE
¥ú·½Light source Wave Length¡G670nm¡A¥iµø¥ú¥b¾ÉÅéVisible Diode Laser¡C
´ú¶q½d³òmm
Measuring range 0.01¡ã2 0.05¡ã12 0.2¡ã30 0.2¡ã30 0.5¡ã55
0.5¡ã60 0.5¡ã80 0.5¡ã80 0.7¡ã150 0.7¡ã220
³Ì¤p¸ÑªRÈ µm
Resolution 0.05 0.05 0.05 0.05 0.1 0.1 0.1 0.1 1 1
«²{©Ê µm
Repeatability ±0.2 ±0.2 ±0.3 ±0.5 ±0.5 ±0.5 ±0.5 ±1 ±2 ±2
ª½²{©Ê µm
Linearity ±0.3 ±0.5 ±1.5 ±2 ±2 ±2.5 ±2.5 ±4 ±8 ±12
Á`¦Xºë«× µm
Total accuracy ±0.5 ±1 ±2 ±3 ±3 ±4 ±4 ±5 ±12 ±15
±½´yÀW²v
Number of scans 1800¦^ / ¬í scans/s
±½´y³t«×m/s
Scanning speed42 110 172 172 350 350 350 420 560 420
¨Ï¥Î·Å«×
Operation temperature 0~45¢J
