2-roller continuous rolling mill
Model: 2LG
Category: Machine Tools / Metal Forming Machine Tools / PCB Punching Presses
Characteristics
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: Shanghai Engineering Machinery Fact... Model Number: 2LG
color: green/blue material: iron output(annual): 3000~6000T,6000~12000T
copper rod dia: 20--8,17--8,30--20
Packaging & Delivery
Packaging Detail: standard export packing
Delivery Detail: 2~3 months after downpayment
Specifications

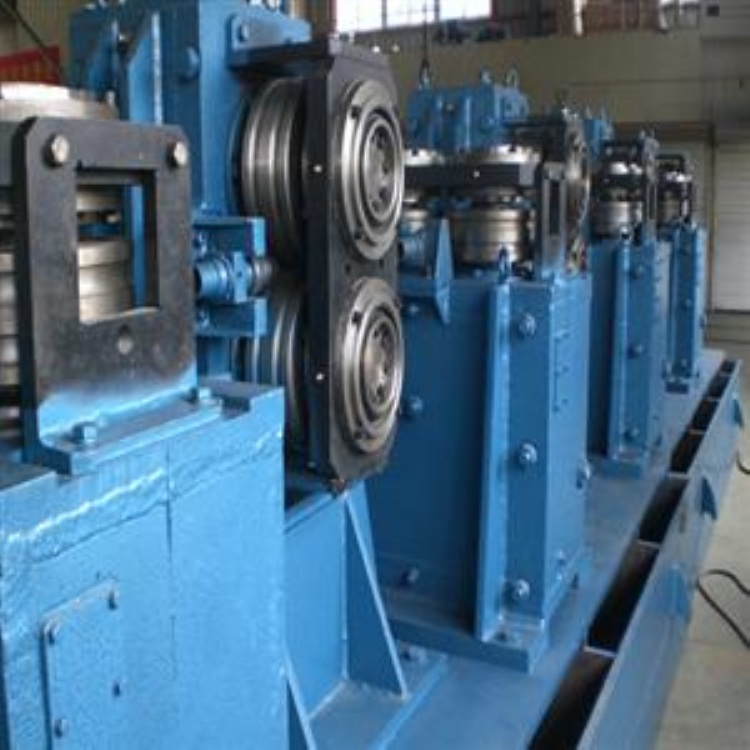

This rolling mill is used for continuous cold rolling of copper rod.
This 2 roller mill machinery is used for continuous cold rolling of copper rods. Featuring high efficiency, lower power consumption and capability of fining and reinforcing crystal structure of copper rods.Its operation is easy and flexible.The rods to be rolled are introduced at crawl speed.It can be reversed and be started at full load.
The rolls of this mill adopt short cantilever support and can be quickly replaced.The transmission system and bearings are lubricated by pressure oil,copper rods are cooled by emulsion,and it is assured that lubricating oil and cooling emulsion are completely separated.This equipment is reliable and low on maintenance cost.
The line is composed of main motor, reducer box, rolling mechanism frames, thin-oil lubrication system, emulsion system, and take-up unit.
