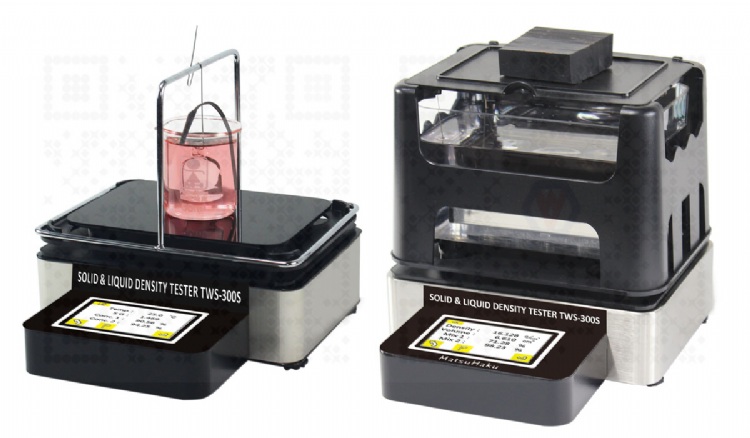

Multi-function Solid Liquid Density Tester TWS-300S
Model: TWS-300S
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Max weight: 300g
Weighing precision : 0.01g
Solid density precision: 0.001g/cm3
Solid mix ratio precision: 0.01%
Liquid relative density precision: 0.001g/cc
Liquid concentration precision: 0.1%
Specifications
Suitable for:
Solid mode:
Laboratory of solder, brass, bronze, silver, nickel, zinc, plastic, rubber, wire and cable, glass, film, hard alloy, soft synthetic leather, leather, elastic material, oil seal, oil ring, new materials, and other recycling industries.
Liquid mode:
Acid Solution, Alkaline Solution, Saline Solution, Anti-oxidant Solution.
Principle:
Solid mode:
referring to the standards of ASTM, JIS, ISO, and by applying the buoyancy of the object immersed in liquid and hydrostatics principle, the density, volume mixture ratio of dese solid materials can be shown.
Liquid mode:
In accordance with ASTM, JIS ISO standards, and by adopting the buoyancy method of Archimedean principle, the S.G and concentration of liquid can be shown rapidly.
Functions :
1. With the combination of different liquid accessories, you can measure the specific gravity of the liquid you need.
2. Large-size sink design reduce the error caused by the buoyancy of the suspension rail. Sink size: 148 * 100 * 85 mm
3. The solid test mode has upper and lower limit density functions, which can determine whether the specific gravity of the test object is qualified. With buzzer.
4. The solid test mode has an infrared temperature sensor that can automatically detect water temperature and automatically perform water temperature compensation.
5. With automatic temperature compensation, manual temperature compensation, and solution compensation functions.
6. With two groups of mixing ratio function. For research and development of new materials can directly display the% value.
Model |
TWS-300S |
TWS-600S |
||
---|---|---|---|---|
Max weight |
300g |
600g |
||
Weighing precision |
0.01g |
|||
Solid mode |
Density precision |
0.001g/cm3 |
||
Mix ratio |
0.01-100.00% |
|||
Liquid mode |
Relative density |
0.001g/cc |
||
Concentration precision |
0.1-100.0% |
