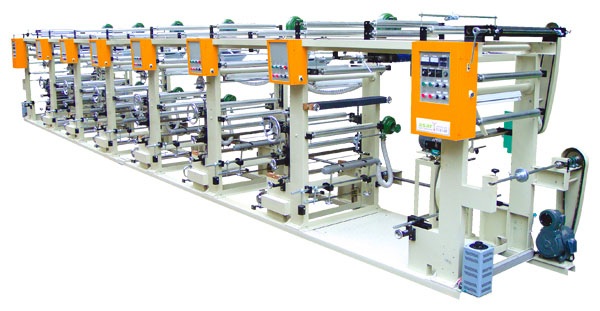

Automatic HIGH-SPEED Rotogravure Printing Machine
Model: ARP
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Rotogravure Printing Press
Characteristics
This machine is designed for printing on materials such as OPP, PE, PP, PVC, shrinkable film, wrapping paper, and aluminum foil.
The machine uses one piece cast machine frame, EPC web guided device, and auto-tension controller to improve performance.
Printing can performe synchronically on front and reverse.
Printing range from 1 to 12 colors.
Main machine is controlled and driven by AC motor with inverter, no adjustment is required and easy to operate.
The machine will stop automatically when running out of materials. Great stability and continuous high speed to increase efficiency.
Specifications
MODEL |
ARP800 |
ARP1000 |
||||||
One Process Color Printing |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
Printing Speed |
20~90m/min |
20~90m/min |
||||||
Max. Printing Width |
800mm |
1000mm |
||||||
Printing Length |
300mm~1000mm |
300mm~1000mm |
||||||
Thickness |
0.018mm~0.2mm |
0.018mm~0.2mm |
||||||
Max. Winding Diameter. |
750mmf |
750mmf |
||||||
Drying Equipment |
Heater style, Two-step control, 7.2 kw for each color |
|||||||
AC Driving Motor |
2HP |
2HP |
3HP |
5HP |
5HP |
7.5HP |
7.5HP |
10HP |
Power Required (kw) |
12.4 |
19.6 |
27.5 |
36.2 |
44.9 |
54.6 |
61.8 |
71.7 |
Machine Dimension: |
270x158 |
405x158 |
540x158 |
675x158 |
810x158 |
945x158 |
1080x158 |
1215x158 |
270x178 |
405x178 |
540x178 |
675x178 |
810x178 |
945x178 |
1080x178 |
1215x178 |
|
Machine Weight (kg) |
1150 |
1700 |
2250 |
2800 |
3350 |
3900 |
4450 |
5000 |
1230 |
1780 |
2330 |
2880 |
3430 |
3980 |
4530 |
5080 |
|
Packed Dimension: |
285x168 |
420x168 |
555x168 |
690x168 |
825x168 |
960x168 |
1095x168 |
1230x168 |
285x188 |
420x188 |
555x188 |
690x188 |
825x188 |
60x188 |
1095x188 |
1230x188 |
|
Gross Weight (kg) |
1550 |
2180 |
2810 |
3420 |
4050 |
4680 |
5310 |
5920 |
1680 |
2310 |
2660 |
3550 |
4180 |
4810 |
54400 |
6050 |
|
Selective Equipment |
||||||||
EPC web guided device |
Auto-Tension Control Unit |
|||||||
Air shaft |
Ink circulating pump |
|||||||
Static ellminator |
Corona Treater |
