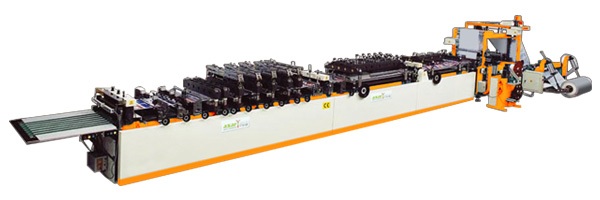

Automatic High-Speed Three Side Sealing Bag Making Machine
Model: ATS600Z
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
ATS600Z
Automatic High-Speed Three Side Sealing Bag Making Machine
Specifications
Control System |
Digital Control System |
Film Feed Machine |
Three AC Servo Motor Drive System |
Heat-Sealer Vertical Movement Mechanism |
Single AC Servo Motor Drive System |
Seal Width |
Cross Seal : 5-80mm |
Sealer Station |
Cross Seal : 5 Set Heating Station 3 Set Cooling Station |
Longitude Seal : 3 Set Heating Station 3 Set Cooling Station |
|
Zipper Unit : 2 Set Heating Station 2 Set Cooling Station |
|
Sealer Bar |
Cross Staling Bar : 3 Set |
Longitude Sealing Bar : 3 Pcs |
|
Cooling Knife |
Cross Seal : 2 GroupsLongitude Seal : 3 Sets |
Zipper Unit : 2 Sets |
|
Heat-Sealer AC Servo Motor |
3.5 KW (1 Set) |
Feed AC Servo Motor |
1.0 KW (3 Sets) |
EPC Control |
0.13 KW (1 Set) |
Longitudinal Heat-Sealer |
5 KW (5 Sets) |
Zipper Heat-Sealer |
5 KW (2 Sets) |
Cross Heat-Sealer |
5 KW (5 Sets) |
Compressed Air |
0.6 Mpa (6 kgf/cm²) |
Cutting Knife |
1 Set |
Zipper Mould |
1 Set |
Stand-Up Mould |
2 Sets |
ø8mm Hole Punch Unit |
2 Sets |
Easy-Tear Perforation Unit |
2 Sets |
Heat-Sealer-620mm, 860mm, 640mm |
1 Set / Each Size |
Rubber Sheath |
10 Sets |
Selective Equipment |
|
Automatic Slider Insertion |
CE Self Declaration Modification |
