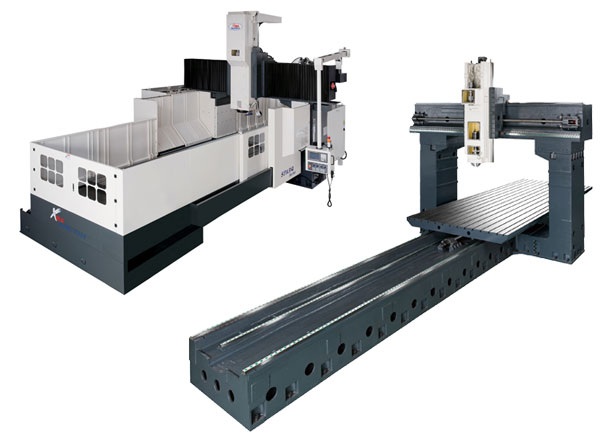

CNC Milling Machine
Model: BMC-5224
Category: Machine Tools / Machining Centers / Vertical Machining Centers, Double-Column-Type
Characteristics
Outstanding Features:
The column and bridge are annealed and stress relieved to ensure structural stability.
Linear guideways on X and Y axes, box ways on Z axis.
High precision pre-loaded linear guideways feature low frictional co-efficient low stick-slip and high thrust force sensitivity ensuring dynamic movement accuracy.
6,000 RPM gear-driven spindle is standard.
32-tool arm-type ATC.
Extra wide door for easy loading and unloading of workpieces.
The ideal for: Automobile forming dies, plastic injection molds, machine parts machining, aerospace parts machining.
Specifications
|
機型
|
BMC-5224
|
|
|
行程 |
X,Y,Z軸
|
5,200x2,700x920(1,100) mm
|
|
主軸鼻端至工作台
|
200~1,120 mm (200~1,300)
|
|
|
主軸中心至立柱距離
|
475 mm
|
|
|
門寬
|
2,350 mm
|
|
|
主軸 |
轉速
|
50~6,000 rpm
|
|
主軸馬力
|
26 kw
|
|
|
軸向馬達馬力
|
9/7/7 kw
|
|
|
刀具錐度
|
BT-50
|
|
|
工作台 |
工作台面積
|
5,200x2,100 mm
|
|
工作台最大荷重
|
20,000 kgs
|
|
|
T型槽(寬*槽數*間距)
|
10x22x200 mm
|
|
|
進給速度 |
X,Y,Z軸快送
|
10/12/12 m/min
|
|
最大切削進給速度
|
6 m/min
|
|
|
刀庫 |
刀庫容量
|
32 (選購 40/60)
|
|
刀具型式
|
BT-50
|
|
|
最大刀具直徑
|
127 mm
|
|
|
最大刀具重量
|
15 kgs
|
|
|
最大刀具長度
|
300 mm
|
|
|
刀對刀(平均換刀時間)
|
8 秒
|
|
|
工作精度 |
定位精度
|
JIS ±0.005/300 mm
|
|
重覆精度
|
±0.005 mm
|
|
|
循圓精度
|
0.03/300 mm
|
|
|
重量尺寸 |
所需氣壓
|
6 kg / cm²
|
|
機械重量
|
49,000 kgs
|
|
|
耗電量
|
50 KVA
|
|
|
佔地面積
|
12,470X5,240X4,600 mm
|
|
