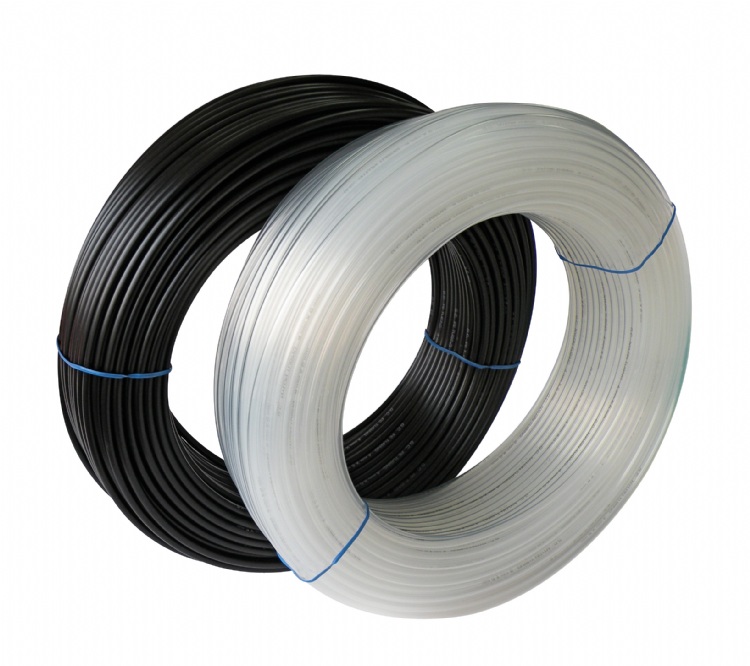

Nylon Tube
Model: NY
Category: Machinery Parts and Components / Piping Systems (Pipes, Valves, Fittings) / Flexible Hoses
Characteristics
● direct sunlight-resistant, anti-UV.
● wear and impact resistance, high pressure resistance.
● good chemical stability, not aging.
● heat-resistant, high temperature
● moisture-proof, waterproof.
Specifications
| NO. | I.D | O.D |
LENGTH(m/roll) |
Working Pressure |
Bursting Pressure |
| NY-0204 | ∮2 | ∮4 | 200 | 25kg/cm2 | 100kg/cm2 |
| NY-2504 | ∮2.5 | ∮4 | 200 | 18kg/cm2 | 70kg/cm2 |
| NY-0406 | ∮4 | ∮6 | 100 | 13kg/cm2 | 55kg/cm2 |
| NY-0608 | ∮6 | ∮8 | 100 | 12kg/cm2 | 50kg/cm2 |
| NY-7510 | ∮7.5 | ∮10 | 100 | 12kg/cm2 | 50kg/cm2 |
| NY-0912 | ∮9 | ∮12 | 100 | 12kg/cm2 | 50kg/cm2 |
| NY-1/4" | ∮4.57 | ∮6.35 | 100 | 12kg/cm2 | 45kg/cm2 |
| NY-3/8" | ∮6.99 | ∮9.53 | 100 | 12kg/cm2 | 45kg/cm2 |
| NY-1/2" | ∮9.53 | ∮12.7 | 100 | 12kg/cm2 | 50kg/cm2 |
