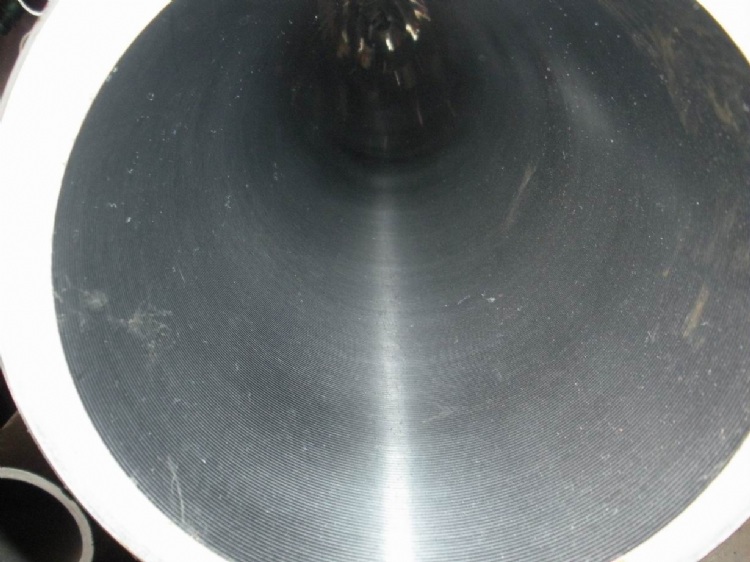

Skived&roller burnished tube
Model: SRB
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Hydraulic Cylinders
Characteristics
1. Standard&material:EN10305-1 E355,C45E,34CrMo4,42CrMo4,DIN2391-2 ST52,ST52.3, ASTM A519 SAE1020,SAE1045,SAE1026,SAE4130,SAE4140,etc.
2. Size range: 82mm*70mm - 340mm*300mm
3. Manufacture method: cold drawn+skived&roller burnished
4. Delivery condition: BK,BKW,BKS,GBK,NBK
5. Tolerance of ID:H7,H8,H9,H10
6. Roughness of bore: 0.25um max
7. Tolerance of W.T: +/-5%
8. Straightness: 0.5mm/1000mm max for tubes below 3m, 0.8mm/1000mm for tubes between 3m and 6m, 1.2mm/1000mm for tubes above 6m.
