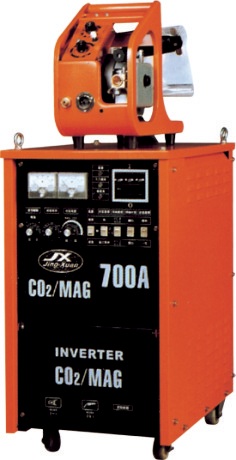

IGBT Inverter Type CO2/MAG Semi-Automatic Welding Machine
Model: CO2/MAG-700A
Category: Machine Tools / Welding and Cutting Machines / Inverter Controlled Automatic Co2/Mag Welding Machines
Characteristics
1、Ootions for weld rode diameters,solid-core/drug-core weld rod switch and function forselecting arching collectoin.
2、Single touched/individual switch function for adjustment
3、Attached with many types of safety protection mechanism,such as secondary short circuit protection,overheat protection and etc., for corresponding to different welding applications.
4、Suitable to the high-quality and high-speed welding requirements for low-carbon steel,stainless steel and so on.
5、Stable electricity current for welding,uniform transitional quality,smail splash,proper arching force.
Specifications
| Item | CO2/MAG-700A |
| Rate Input voltage (V,HZ) |
1Ф220V/380V 50HZ/60HZ±10% 3Ф220V/380V 50HZ/60HZ±10% |
| Rated Input Power (KVA) | 42.7KVA (34.2KW) |
| Rated Output Current (A) | 700A |
| Output Currint Range (A) |
1Ф 40~500A 3Ф 40~700A |
| Rated Output Voltage (V) | 55V |
| Output Voltage Range (V) | 14-55V |
| Duty Cycle (%) | 60% |
| Dimensions (W x D x H) (mm) | 420 x 620 x 800 MM |
| weight (kg) | 125kg |
