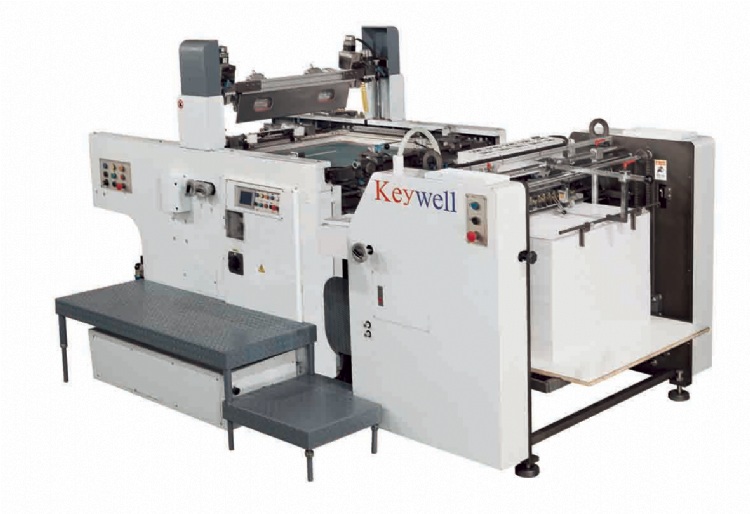

Automatic 360 front pick-up cylinder screen printing machine
Model: KW-72A1
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Screen Printing Machines
Characteristics
*Front pick-up single feeding structure
*Double sheets preventing sensor
*Anti-static fan device
*Dust cleaning roller
*Pulling side lay (on left/right sides)
*Colorful HMI touch panel
*Squeegee height is controlled by the motor with touch panel
*Non-dropping squeegee device
*Ink dropping plate
*Tog grade linear guide rail for screen transmission
*Screen frame pull-out device
*Lowering type delivery board for clean screen easily
Specifications
|
Model |
KW-72A1 |
KW-86A1 |
KW-105A1 |
KW-116A1 |
Optional accessory: 1. Air compressor (1HP) 2. Crossover delivery stand 3. Smaller vacuum holes of the printing cylinder. 4. Extra height of the feeding stacker (+300mm,) 5. Pre-stacking board with rail for the feeder
|
|
Max. substrate size (W*D) mm |
720 x 520 |
800 x 600 |
1050 x 750 |
1160x830 |
|
|
mm Min. substrate size (W*D) mm |
270 x 200 |
350 x 270 |
420 x 297 |
560 x 350 |
|
|
Max. printing area (W*D) mm |
720 x 500 |
800 x 580 |
1050 x 730 |
1160 x 810 |
|
|
Substrate thickness (mm) |
0.05~0.5 |
0.075~0.8 |
0.075~0.8 |
0.075~0.8 |
|
|
Printing speed (P/H) |
400~2800 |
400~2600 |
400~2500 |
400~1800 |
|
|
Frame size (W*D) mm |
880 x 880 |
1070 x 1070 |
1300 x 1170 |
1430 x 1250 |
|
|
Screen frame thickness (mm) |
30~35 |
||||
|
Delivery board height (mm) |
860 |
850 |
850 |
885 |
|
|
Squeegee angle adjustment |
0~45° |
||||
|
Squeegee front/rear adjustment |
±15mm |
||||
|
Screen frame micro-adjustment |
±10mm |
||||
|
Printing accuracy (mm) |
±0.02 |
±0.03 |
±0.04 |
±0.05 |
|
|
Power source |
3∮ 220V/380V 50/60HZ |
||||
|
Power consumption |
6 |
6.75 |
9.5 |
10.25 |
|
|
Air pressure |
5~7kg/cm2 |
||||
|
Dimension (L*W*H) cm |
306*192*145 |
313*242*145 |
380*270*142 |
410*295*148 |
|
|
Weight (kg) |
3100 |
3400 |
4250 |
5600 |
|
