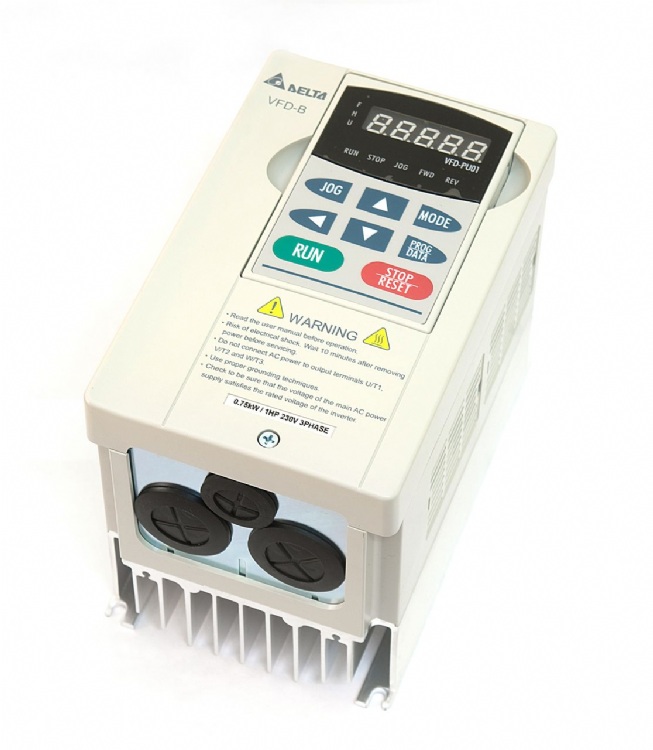

DELTA INVERTER VFD-B
Model: VFD-B TYPE
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Assembly Machines
Characteristics
Features:
16-bit microprocessor controlled PWM output
Automatic torque boost & slip compensation
Output frequency 1.0~400Hz
16-step speed control & 15-step preset speed
PID feedback control & PG feedback control
4 accel./decal. Times & 2 S-curve selections
Pump control & automatic energy-saving
Process follower – 10~10DC,0~10VDC,4~20mA
MODBUS communication RS-485(Baud rate 38400)
Coast or ramp to stop
Adjustable V/F curve & automatic voltage regulation
Automatic adjustment of accel./decal. time
Auto tuning & sensorless vector control
Sleep / Revival Function
Master / Auxiliary and 1st/2nd frequency source selectable
Specifications
VFD-B SERIES
|
VFD-B / 1-PHASE 220V VOLTAGE |
| VFD007B21A--0.75KW |
| VFD015B21A--1.5KW |
| VFD015B21B--1.5KW |
| VFD022B21A--2.2KW |
| VFD-B / 3-PHASE 220V VOLTAGE |
| VFD007B23A--0.75KW |
| VFD015B23A--1.5KW |
| VFD015B23B--1.5KW |
| VFD022B23B--2.2KW |
| VFD037B23A--3.7KW |
| VFD055B23A--5.5KW |
| VFD075B23A--7.5KW |
| VFD110B23A--11KW |
| VFD150B23A--15KW |
| VFD185B23A--18.5KW |
| VFD220B23A--22KW |
| VFD300B23A--30KW |
| VFD370B23A--37KW |
| VFD-B / 3-PHASE 440V VOLTAGE |
| VFD007B43A--0.75KW |
| VFD015B43A--1.5KW |
| VFD022B43A--2.2KW |
| VFD037B43A--3.7KW |
| VFD055B43A--5.5KW |
| VFD075B43A--7.5KW |
| VFD110B43A--11KW |
| VFD150B43A--15KW |
| VFD185B43A--18.5KW |
| VFD220B43A--22KW |
| VFD300B43A--30KW |
| VFD370B43A--37KW |
| VFD450B43A--45KW |
| VFD550B43A--55KW |
| VFD750B43A--75KW |
