POWDER MILL
Model: TCS-M02BATCS-M02B-SS
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Crushers
Characteristics
APPLICATION
• Food :Sugar, Salt, Rice, Fermented soybeans (natto), Pepper, Tea, Pollen, Wheatgerm
Raw, Chemical, Medicine, Cosmetics.(Muscovado can be ground to become very fine
powdered sugar; but the equipment must be changed when producing castor sugar.
Salt: it must be stirred fry and cooled before milling)
FEATURES
• It is improved from German machine design and is most applied to each kind of material
of milling stuff.
• More than 600 sets have been sold.
• High production capacity: 200 ~ 600 kg/hr (Take the granulated sugar as the example).
• High fineness: 100 ~ 180 Mesh (Take the granulated sugar as the example).
The fineness can reach 250 Mesh for other materials.
• High speed running: 7000 r.p.m.
• Turbine is a special alloy aluminum gravity casting; then it is forged after casting.
• Turbo-rotor is made of high-grade steel.
• Milling mechanism is the high alloy aluminum casting; it is not rusty easily and also easy
to spread the heat.

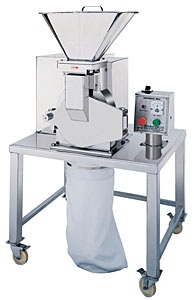

Machine: TCS-M02B
• Equip with good cooling fan and airflow circulation & temperature down design to ensure
the crushing quality.
• Equip with fixed amount pin breaker feeding device that is suitable for soft and sticky
powder which cannot easily be put into machine.
• With a closed material conveying cart (it is only for the machine made of aluminum).
• Dustless running and easy cleaning & operation.
• Options of various stainless steel sieve sheets: 0.4, 0.5, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0 m/m.
FEATURES OF TCS-M02B-SS
• This machine is completely made of stainless steel.
• The material of Turbo-Rotor is the high-grade steel; Turbo-Rotor has hardness treatment
and titanium plating treatment to increase its wear resisting and will not be rusty easily.
• Grinding sieve ring: is made of special steel with hard chrome treatment; both net ring as
well as sieve are made of stainless steel and can be exchanged with each other easily.
• Inside of milling can be cleaned with water; easy cleaning and assembly & disassembly;
meet PIC/S GMP standards; plus a double layer cooling water device.
• Structure of inside: It is improved from German machine design and is most applied to
each kind of material of milling stuff.
• Input: installs a pin breaker for easy input.
Specifications
MODEL |
TCS-M02B |
TCS-M02B-SS |
CAPACITY (Kg/hr) |
200~600 |
200~600 |
POWER |
5HP, 1/8HP |
5HP, 1/4HP |
MACHINE SIZE (L x W x H) mm |
920x1000x1900 |
930x850x1610 |
PACKING SIZE (L x W x H) mm |
1100x1200x2200 |
1200x1100x2000 |
MACHINE TOTAL WEIGHT (Kg) |
350 |
350 |
TCS-M02B TCS-M02B-SS
