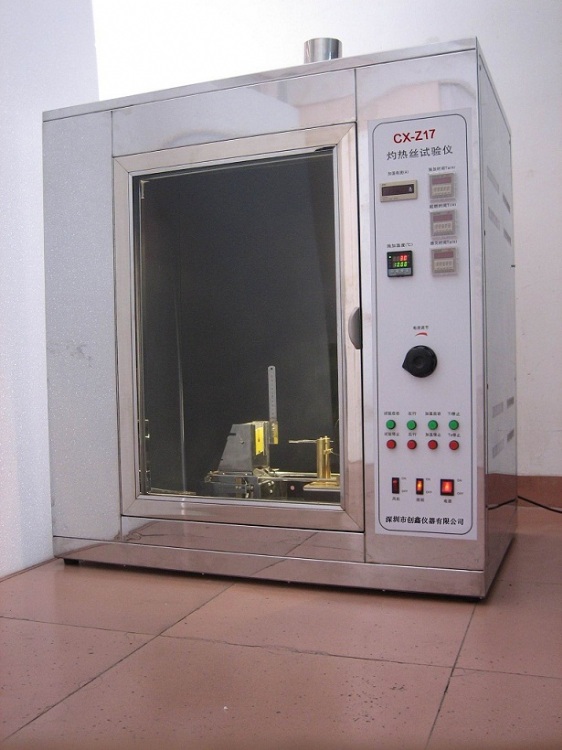

Horizontal and vertical burning tester
Model: Horizontal and vertical burning tester
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Horizontal and vertical burning tester
Basic Description:
1, the horizontal and vertical burning test according to the UL 94-2006 and IEC 60695-11-4, IEC 60695-11-3, GB/T5169-2008 Series and other standard provisions size of a Bunsen burner (Bunsen burner,) and the specific gas source (methane or propane), the flame height and Shi Yan angle on the horizontal or vertical test sample timing Shi burning several times to try products ignited, burning combustion duration and combustion length to assess its flammable and fire risk.
2, the horizontal and vertical burning test instrument for V-0 V-1 V-2, HB, 5V-grade material flammability rating assessment. Applies to lighting, low voltage electrical appliances, household appliances, machine tools, electrical appliances, motors, power tools, electronic equipment, electrical instruments, electrical fittings and accessories such as electric and electronic products and their component parts, production and quality inspection departments, but also applies to insulating materials, engineering plastics, or other solid combustible materials industry.
Technical parameters:
A burner: inner diameter Φ9.5mm ± 0.3mm single-gas and the inner diameter Φ12mm ± 0.3mm mixed gas Bunsen burner
Test inclination: 0 °, 20 °, 45 ° to manually switch
3, the flame height: 20mm ± 2mm to 180mm ± 10mm adjustable
Shi Yan time: 0-999.9s ± 0.1s adjustable
5, I flame time: 0-999.9s ± 0.1s, auto record, manual pause
I blanch time: 0-999.9s ± 0.1s, auto record, manual pause
7, the combustion gases: 98% methane, or 98% of the propane gas (usually LPG can be used instead)
8, flow pressure: with double scale and Pressure Gauge (gas and air)
9, the temperature test range: 0 ~ 1000 ℃
10, the flame temperature requirements: to rise to 700 ° C ± 3 ° C from 100 ° C ± 5 ° C within 44 ± 2 seconds and 54 seconds ± 2 seconds
11 thermocouple: Φ0.5mm import armored (Type K) thermocouple 22 (dual-temperature system, V-0/1/2 (50W) and 5VA / B (500W) level)
12, the experimental background: black background
13, during the test: Test procedures for manual control, independent ventilation
14, with reference to standards: UL 94-2006, IEC 60695-11-3, IEC 60695-11-4, GB/T5169.15 ,16,17,22-2008
15, the studio volume: 0.75 cubic meters, stainless steel chassis (can be customize other dimensions)
16, the device outer dimensions: 1100mm wide x 700mm deep x 1300mm high
Specifications
Horizontal and vertical burning tester
Basic Description:
1, the horizontal and vertical burning test according to the UL 94-2006 and IEC 60695-11-4, IEC 60695-11-3, GB/T5169-2008 Series and other standard provisions size of a Bunsen burner (Bunsen burner,) and the specific gas source (methane or propane), the flame height and Shi Yan angle on the horizontal or vertical test sample timing Shi burning several times to try products ignited, burning combustion duration and combustion length to assess its flammable and fire risk.
2, the horizontal and vertical burning test instrument for V-0 V-1 V-2, HB, 5V-grade material flammability rating assessment. Applies to lighting, low voltage electrical appliances, household appliances, machine tools, electrical appliances, motors, power tools, electronic equipment, electrical instruments, electrical fittings and accessories such as electric and electronic products and their component parts, production and quality inspection departments, but also applies to insulating materials, engineering plastics, or other solid combustible materials industry.
Technical parameters:
A burner: inner diameter Φ9.5mm ± 0.3mm single-gas and the inner diameter Φ12mm ± 0.3mm mixed gas Bunsen burner
Test inclination: 0 °, 20 °, 45 ° to manually switch
3, the flame height: 20mm ± 2mm to 180mm ± 10mm adjustable
Shi Yan time: 0-999.9s ± 0.1s adjustable
5, I flame time: 0-999.9s ± 0.1s, auto record, manual pause
I blanch time: 0-999.9s ± 0.1s, auto record, manual pause
7, the combustion gases: 98% methane, or 98% of the propane gas (usually LPG can be used instead)
8, flow pressure: with double scale and Pressure Gauge (gas and air)
9, the temperature test range: 0 ~ 1000 ℃
10, the flame temperature requirements: to rise to 700 ° C ± 3 ° C from 100 ° C ± 5 ° C within 44 ± 2 seconds and 54 seconds ± 2 seconds
11 thermocouple: Φ0.5mm import armored (Type K) thermocouple 22 (dual-temperature system, V-0/1/2 (50W) and 5VA / B (500W) level)
12, the experimental background: black background
13, during the test: Test procedures for manual control, independent ventilation
14, with reference to standards: UL 94-2006, IEC 60695-11-3, IEC 60695-11-4, GB/T5169.15 ,16,17,22-2008
15, the studio volume: 0.75 cubic meters, stainless steel chassis (can be customize other dimensions)
16, the device outer dimensions: 1100mm wide x 700mm deep x 1300mm high
