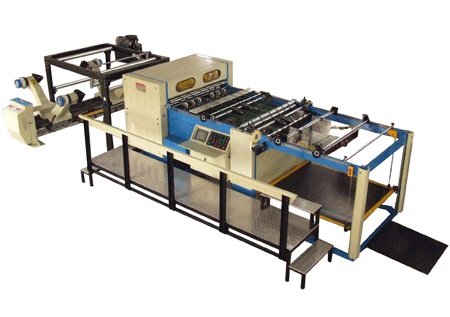

Electronic Sheeter
Model: DingTec ES-1600
Category: Automatic/Industrial Machines & Equipments / Paper Making & Converting Machines / Paper Converting Equipment
Characteristics
* cutting system controlled by high speed AC servo meter, up to 300m per minute or 300 sheets per minute
* Each technical parameters are shown on the monitor instantly
* Foreign imported motor and transducer - paper sheet will be delivered in
overlapping mode efficiently with high speed
* Unique label printer, automatic label printing
Mechanical system
* Air compressor controls the paper clipping, cuts through the paper and
clips the paper firmly without jamming
* Efficient delivery of paper sheets after cutting and moving
* Adjusting stacking height automatically
* Automatic counter and label inserting system
* Two ventilation systems are applied to blow the edge of the paper
* High cutting accuracy, +/- 0.1%
Specifications
Models | ES-1400 | ES-1600 | ES-1900 |
Range of paper material | 40-550g/m² | ||
Max.width of paper roller | 1375mm(54") | 1575mm(62") | 1875mm(74") |
Physical weight | 12T | 13T | 14T |
Maximum speed of cutting | 300m/min | ||
Maximum sheets of cutting | 300 sheets/min | ||
Cutting length range | 450mm×1450mm(18in×54in) | ||
Cutting accuracy | 0.5mm(0.02in) | ||
Max.height of stack-lift | 1300mm(51in) | ||
Elevation accuracy | < 1mm | ||
Power | 29kw | ||
Voltage input | 380v/50HZ |
