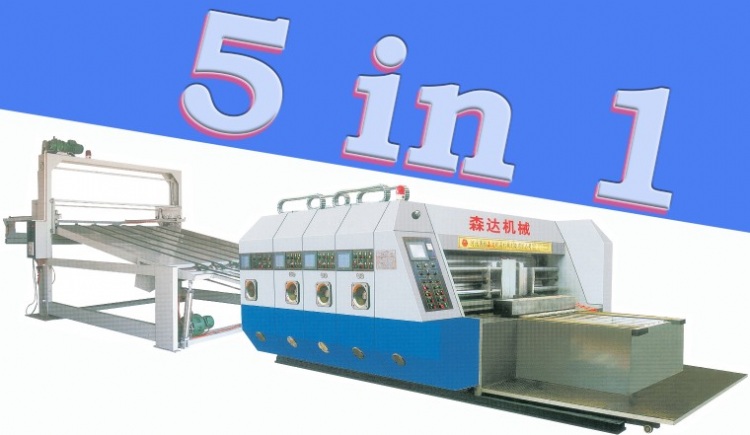

Automatic cartoning machine,5 in 1 function,19KW,Paper feeding,Printing,Slotting,Die cutting & Stacking
Model: SD-EL
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
The whole machine:
1: The above feed part, printing part and slotting part oiling system are used spray type automatic lubrication.
2: The level 1 and 2 reset device. Touch human-machine interface, PLCA control, Automatic phase, Electric high-speed motor.
3: Rank according to four-color printing die cutting slot.
Specifications
Function:
Paper feeding part:
1: Adopt vacuum adsorption,automatically pick the paper up and feed it.
2: Elastic rubber roller fed without destroying the corrugated board.
3: Set dusting device can eliminate (the suction) the dust on the surface of the cardboard.
4: Continuous or skip feeding function.
5: Electric rear box.
6: With the side board to leave the air pump.
Printer:
1:180 and 220 meshes standard metal anilox roller can be selected.
2:The electric phase adjustment and readouted by the dial.
3: Detachment positioning device to ensure that each printing plate keep the same position while detachment and combination
4: Motorizeddetachment and combinationdevice, pneumatic locking.
5:Printing roller adopts sticky and hanging forme.
6:Pneumatic the off version idling, motorized wash ink out.
7:Horizontal electric adjustment for printing roller.
Slotter:
1: 3 parts of slotting and 1 part for corner cut.
2: 2 parts for select paper, and has 4 parts for press the side ( of carton).
3: The electric phase adjustment and readouted by the dial.
4: Detachment positioning device to ensure that each printing plate keep the same position while detachment and combination.
5: Motorizeddetachment device, pneumatic locking.
6: Electric linkage adjustment for slotting part.
7: The slotting wheel cutter and pressure roller can adjustment at the same time.
8: LCD monitor installed in the tool apron.
Automatic stacking part:
1: Automatic counting, ‘take paper arm’ pneumatic lift; auto lifting frame according to the amount of the paper; speed regulating motorcontrol, automatic counting.
Die-cutting part:
1: Axial displacement
2: Sharp knife easily cut cardboard
3:Some bearings imported from Japan.
4: With a waste materials device.
