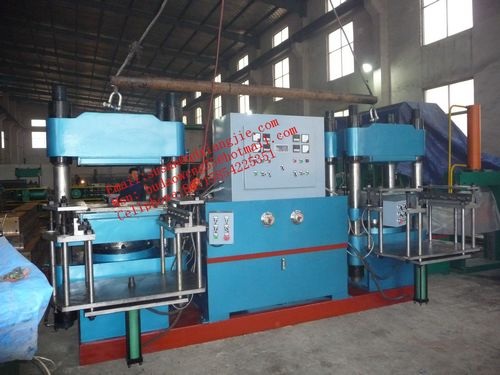

Duplex Full automatic Curing Press(300 ton)



Model: XLB-DQ650x650/3.0 MN

Category: Plastic and Rubber Industry / Rubber Processing Machinery / Other Rubber Processing Machines



Online Inquiry





Characteristics



�c Full automatic
�c Mold ejecting
�c Automatic mould opening device

Type XLB-DQ650x650/3.0 MN
Total Pressure (Ton) 300
Plate Size (mm) 650x650x60
Daylight (mm) 350--500
Plate Unit Pressure (Mpa) 7.1
Layer 1
Piston Stroke (mm) 350
Close Mould Speed (m/s) ≥35
Open Mould Speed (m/s) ≥35
Hydraulic System Pressure (Mpa) 19
Cylinder Diameter (mm) Φ450
Cylinder NO. (Set) 1x2
Motor Power (kw) 7.5x2
Weight (kg) 12800
