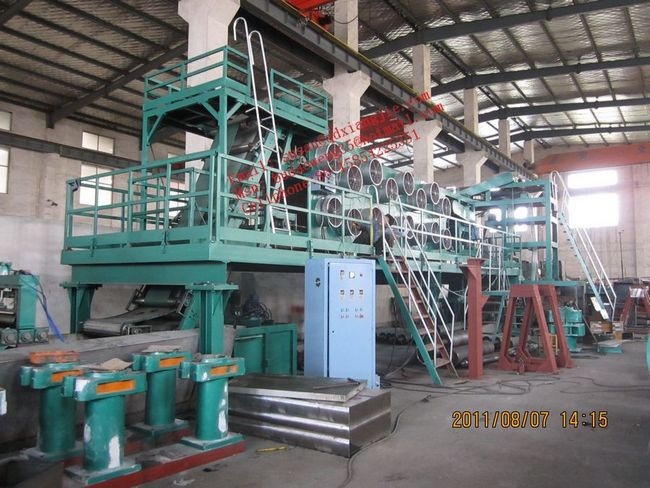

Batch-off cooler machine
Model: (4-12)X800mm
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Batch-Off Machines For Rubber Compound
Characteristics
specification of sheet (4-12)X800mm
Distance between pole 160mm
Power 380V/50HZ
Gas pressure 0.4-0.8Mpa
Max speed of accessing sheet 40m/min
Moving speed of pole 0.117-2.2m/min
Axial fan KXT40-E4 0.25KW
No of fan 32
Temperature of sheet ≤room’s temperature +5℃
Capacity 13t/h
Width of sheet 700mm(max 800mm)
speed of the line 5∼40m/min(synchronous with main engine)
dip tank for sheet Circulating cooling water
Specifications
1, has more than 28 years experience
2, can supply many kinds rubber machine
3, will design as your requirements .
Plate vulcanizing press machine, two-roll mixing mill machine, rubber extruder machine, banbury intensive kneader machine, bale cutter machine, conveyer belt vulcanizing press machine, tyre retreading machines, rubber refiner machine, rubber cracker machine, etc. we especially specialize in the design and manufacture of the nonstandard products .
The products have been exported to many countries. such as America, France, Canada, Australia, and Southeast Asia, Middle-east, etc .
Vulcanizing press : H, C, Column , slabside types , used to make rubber mat,tiles,seals,belt,sole,sheet,hump,stopper,tread etc, kinds of rubber products.
Rubber mixing mill:
XK-160 ,XK-250,XK-360,XK-400,XK-450,XK-550,XK-560,XK-660 etc.
Kneader: 3L,5L,10L,20L,25L,35L,55L,75L,110L,150L etc.
Extruder:XJ-65,XL-85,XJ-115,XJ-150,XJ-200,XJ-250 etc.
Bale cutter: XQL-8(660mm width), XQL-16(1000mm width) etc
. .......... .
.........
