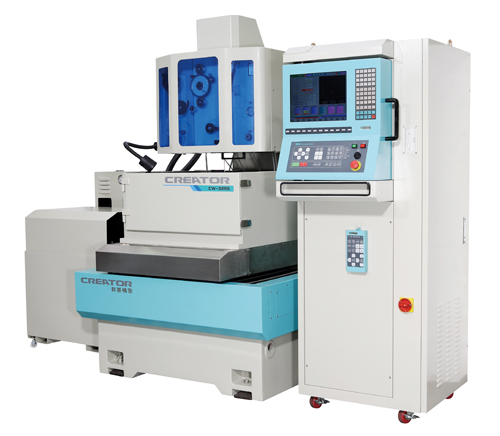

Wire EDM Submerged Type
Model: CW-325S
Category: Machine Tools / Electric Discharge Machines / CNC Wire Cutting Machines
Characteristics
1.High Speed AC Power Supply,increases the mold's life and reduces wire consumption.
2.Super fine circuit as standard, the machining roughness may up to Ra0.25um.
3.Super fine circuit as standard, the machining roughness may up to Ra0.25um.
4.X,Y axes equipped with high precision slide way, use C1 grade high precision ball screw, optional 1u linear scale may equipped for full close loop feedback control.
5.High stiffness Fc35 casting structure design,larger base keeps the long term machine precision.
Specifications
Machine specification CW325(Submerged type)
Machine dimensions 1700x1500x2120 mm
Max. workpiece size 600x850x200 mm
Max. workpiece weight 350 kg
XY-axis trip 350X250 mm
UV-axis trip 50 x 50 mm
Z-axis trip 220 mm
Wire diameter used O 0.10~0.30mm
Wire tension 2~25 N
Max. workpiece height 200 mm
No. of axes for simultaneous control XYUV V 4 axis
Transmission system 5 Axis, AC servo motor
Max. cut taper 22.5X (Thickness 100 mm)
Space occupied 1900x2900x2200 mm
Total weight 2200 kg
