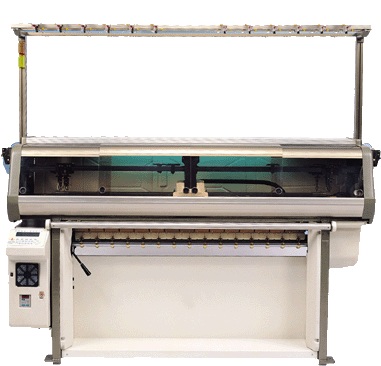

COMPUTERIZED FLAT KNITTING MACHINE
Model: KH-313
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Flat Knitting Machines
Online Inquiry
Characteristics
*YARN FEEDER
Feeders made of special steel which prevents them from shaking during knitting. This eliminates yarn breakage. They are also easy to thread the yarn through.
*COMPUTER CONTROL
Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine.
LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel.
Specifications
|
 Specification
|
| |
|
SPECIFICATION
|
|
MODEL
|
KH-313
|
|
GAUGE
|
7G, 10G, 12G, 14G, 16G, 18G
|
|
KNITTING WIDTH
|
40"
|
|
KNITTING SPEED
|
Max. 1.2 m/sec.
Knitting speed varies according to gauge, yarn and knitting conditing.
|
|
YARN CARRIER
|
6 yarn carriers on three double rails.
|
|
CAM SYSTEM
|
Single system.
Tuck on front bed & rear bed, high butt & low butt system.
|
|
NEEDLE BED
|
Replaceable segment needle bed. (30" , 40")
|
|
STITCH DENSITY
|
Electronic control with stepping motor 00 - 99 levels.
|
|
RACKING
|
6 levels to left or to right.
|
|
FABRIC TAKE-DOWN
|
Compound main roller, torque motor control, high speed & low speed adjustable.
|
|
STOP MOTION
|
Yarn break, knot, needle break, shock, fabric drop out, wraparound check, piece count, motor overload etc.
|
|
DRIVE
|
Timming belt, no oil needle, programming speed.
|
|
TOP TENTIONS
|
Electronic top tensions easy to thread the yarn through.
|
|
OPERATION LAMP
|
Green : normal operation.
Yellow : abnormal stop.
|
|
POWER
|
220V, 1/3HP motor.
|
|
CONTROL SYSTEM
|
Computer control-LCD display.
|
|
WOODEN CASE
|
2250 x 1100 x 1790 mm. N./G. Weight 550/700 kgs.
|
|
| |
"All the contents of this catalog are subject to change without notice"
|
|
