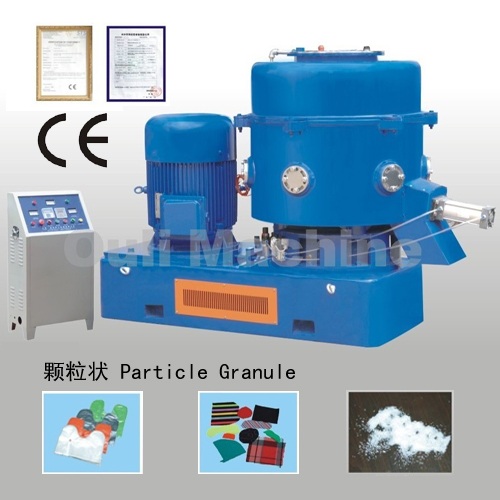

waste plastic grinding milling machine
Model: 300 Model
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Recycling & Pelletizing Machines
Characteristics
For PP,PE,PVC,LDPE,HDPE,LLDPE etc,many soft substance plastic film,bags,silk,strip,sheet,straw,can recycle and put them into reproduction.
One machine with multiple purposes,it can replace mixer or drier,the raw material color will not be changed.
Lower temperature macking granule,it doesn't damage the molecule structure and physical performance.
Specifications
This machine,adopting advanced technology from Japan,uses the principle of Multi-knives to disintegrate rapidly, stir continuously,mix for friction for heat,and Cool fast to shrink.The machine makes the scraps such as plastic film,thread,slice,Soft plastic tube,foaming material, degradative material recycled to for further Production, hence a latest ideal device to recover and regenerate the plastic to become granules
Main Features:
A: Disintegrating,stirring and coloring can be finished in one time
B: The machine occupies small land
C: Easy in structure and convenient to operate
D: Adjustable between the knife gaps, convenient to replace the knife
E: High production dfficiency and low energy consumption (Daily output Reaches 1 ton with electric power consumption 200 kwh)
F: Basically don’t damage the molecular structure of raw material , nor the physical performance.
Technical Parameter:
1 |
Capacity of Barrel |
300L |
2 |
Output Capacity |
200-300kg/h |
3 |
Main Motor Power |
37kw |
4 |
Water Adding Device |
90w |
5 |
Heating Power |
1.5kw |
6 |
Weight of whole machine |
1200kg |
7 |
Overall Dimensions |
2000×1000×1400mm |
