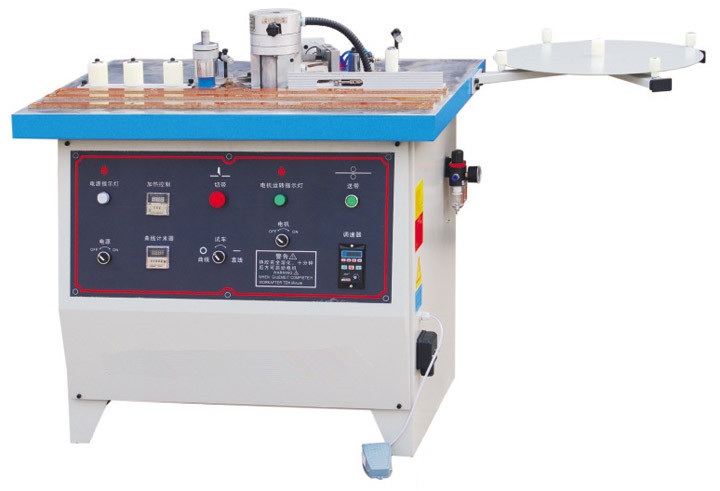

Double surface Gluing Edge bander
Model: HWE532
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Hand feed Edge Banding Machine
Characteristics
1, just 1000×725×1505mm volume,very mini but full function to edge banding.
2,This machine can banding both curve and beeline panel,
3, Uniqe lower-planted structure of glue dissolver,so it is stability and there is no leaking glue from box.
4, Using stainless thermostability bearing on glue box,so box has long time life.
5,Double coats of glue ensure solid cement.
6,It suits for PVC Melamine and veneer edge banding materials.
Specifications
Banding belt thickness |
0.45∼3mm |
Banding height |
15-50mm |
Min.Banding radius |
20mm |
Banding belt materials |
PVC、 Wood strip |
Heater |
1.5kW/220V |
Motor power |
180W |
Feeding speed |
3.3∼16.5m/min |
Air pressure |
0.6MPa |
Overall dimensions |
1000×725×1505mm |
Net.weight |
280kg |
