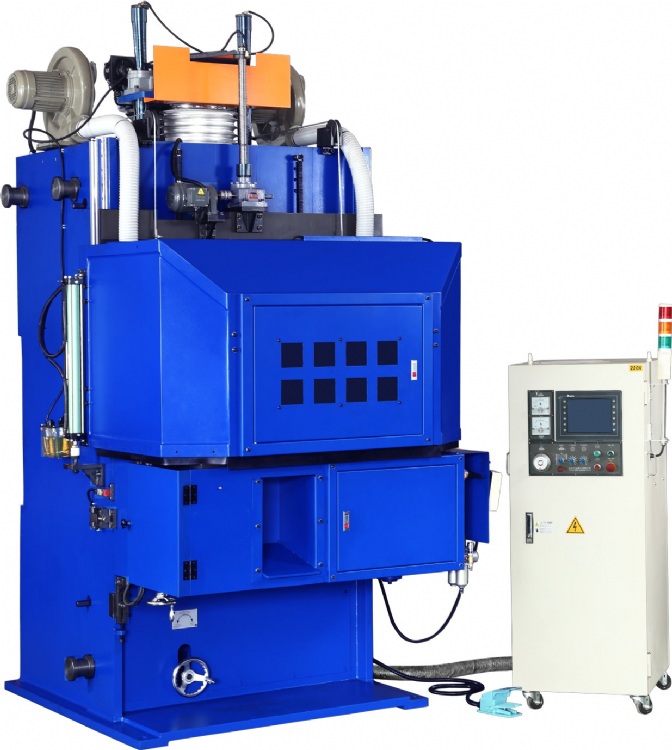

Spring End Grinder
Model: SEG-series (down feed type)
Category: Machine Tools / Grinding Machines / Grinding & Finishing Machines
Characteristics
1. 2 axes with servo motors for plate rotary and upper stone rotary
2. Available option of Germany or English grinding stones
3. Dressing arm with star dressers (option for motor-driven)
4. 40 lines of spring edit program and PLC for rough & fine grinding
5. Japanese Yaskawa servo motors and Schneider electricity parts
6. Available for customized model for longer spring length and double loading plates.
7. More options like (a) motor-driven lower stone up/down (b) free length detector
(c) belt system to rotate springs (d) alert of wheel out system
Specifications
Model No. |
SEG-450-2S |
SEG-660-2S |
SEG-915-2S |
|
Wire Diameter (mm) |
2.0~8.0 |
3.0~10.0 |
5.0~20.0 |
|
Standard Axes |
2 |
|||
Max. Spring O.D. (mm) |
60 |
80 |
200 |
|
Spring Length (mm) |
15~300 |
20~300 |
30~400 |
|
Production Rate (pcs/min) |
8~60 |
6~45 |
2~75 |
|
Plate Rotary Speed (rpm) |
1~40 |
1/2~30 |
1/2~30 |
|
Grinding Stone Speed (rpm, 60Hz) |
1450 |
1000 |
730 |
|
Spring Verticality (degree) |
<1.1 |
|||
Power Supply |
220V, 3Æ, Transformer for 380/400/415/440V, 3Æ |
|||
Machine Dimension (mm) |
L |
1300 |
1600 |
1700 |
W |
1750 |
2100 |
2500 |
|
H |
2600 |
3000 |
3200 |
|
Machine Weight (kg) |
2850 |
5100 |
6300 |
