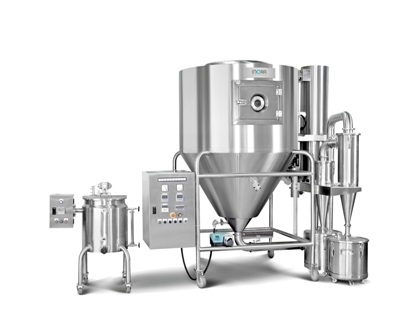

Spray Dryer
Model: YS-SD-2~50
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Pharmaceutical Machines
Characteristics
1. Dry into powder from the solution or paste liquid. 2. The original essence of material will not be changed after drying. 3. Able to dry high viscosity and concentration liquid. 4. PLC auto control system or touch screen interface for easy operation.
All the disign and manufacture are qualified cGMP standard and FDA requirement.
Explosion proof system is available for organic solvent process.
Air volume control is proportional by automatic air gate.
Optional equipment for different product feature.
-Temperature recorder
-CIP auto cleaning system
-Dehumidifier facility
Specifications
| Model | (mm) Diameter of tank |
(L/HR) Capacity |
Pattern Size (W x L x H) mm |
| YS-SD-2 | 800 | 01-02 | 2500 x 3000 x 2500 |
| YS-SD-5 | 900 | 02-05 | 3000 x 3500 x 3000 |
| YS-SD-10 | 1200 | 06-10 | 4000 x 4000 x 3500 |
| YS-SD-15 | 1400 | 10-15 | 4500 x 4500 x 4000 |
| YS-SD-20 | 1500 | 12-20 | 5000 x 5000 x 4500 |
| YS-SD-30 | 1750 | 20-30 | 5000 x 5500 x 6000 |
| YS-SD-50 | 2000 | 30-50 | 6000 x 6000 x 7000 |
| |
