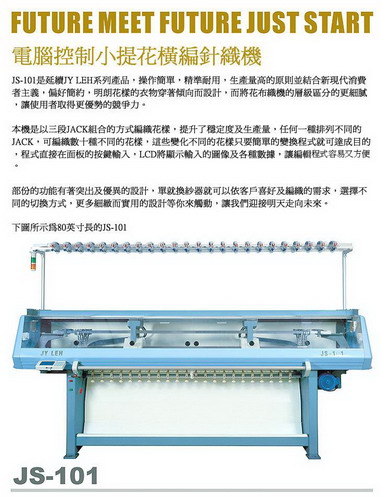

computerized semi jacquard flat knitting machine
Model: JS-101
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Flat Knitting Machines
Characteristics
Tandem CAM design increases higher knitting efficiency.
More parameters setting make knitting performance more accurate and delicate.
Three step jack design make knitting patterns more creative.
Large-sized and bilingual LCD panel let users can be easy to handle knitting skills.
Specifications
Model:JS-101
Gauge:7, 10, 12, 14, 16, 18G
Bed Width:64, 80（Inch）
Knitting Speed:
Max. Carriage speed 120 cm/sec, Knitting speed 15-100 cm/sec
(According to gauge and knitting conditions.)
Knitting Width:64”(27”x 2), 80”(35”x 2)
Cam System:Double cam or tandem cam 1x1 system
Stitch Density:31 levels electronically controlled stitch density.
Yarn Carriers:12 yarn carriers and change at both sides.
Racking:1/2 pitch available from any position and 1 pitch x 5 section.
Needle Selection:High and low butt needles and 3 step jack selection.
Take Down Roller:31 levels automatically adjustable on each level.
Top Tensions:
Large knots cause machine to stop. Small knots lower the speed.
Stop Motion:Yarn breakage, knot, needle break, shock detection,
wrap-around check, piece count completion and program error…etc.
Drive:Direct drive with belt, 1HP 3 phase AC motor by inverter control,
31 speed selection and freely programmable.
Signal Lamp:Green / normal, Orange / abnormal and stop motion.
Data Input:Input from keyboard, display by LCD and R/W by flash disk.
Language:English and Chinese are available.
Power:220V, 50/60Hz, single phase.
